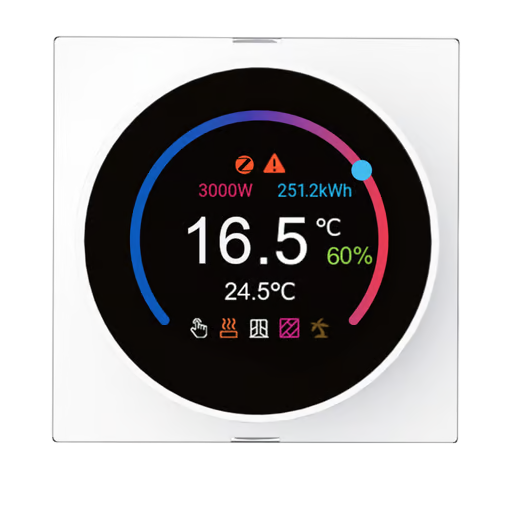

Namron 4512783/4512784


Model	4512783/4512784
Vendor	Namron
Description	Namron edge termostat
Exposes	climate (local_temperature, occupied_heating_setpoint, system_mode, running_state, local_temperature_calibration), temperature_display_mode, operating_mode, child_lock, holiday_temp_set, vacation_start_date, vacation_end_date, power, current, energy, switch (state), window_open_check, anti_frost, summer_winter_switch, vacation_mode, time_sync, auto_time, display_active_backlight, display_auto_off, regulator_percentage, regulation_mode, sensor_mode, boost_time_set, boost_time_remaining, system_mode, time_sync_value, window_state, fault, work_days, humidity

Options

How to use device type specific configuration

power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one of celsius, fahrenheit
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Climate

This climate device supports the following features: local_temperature, occupied_heating_setpoint, system_mode, running_state, local_temperature_calibration.

occupied_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"occupied_heating_setpoint": VALUE} where VALUE is the °C between 15 and 35. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupied_heating_setpoint": ""}.
local_temperature: Current temperature measured on the device (in °C). To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.
system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, auto, cool, heat. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}.
running_state: The current running state. Possible values are: idle, heat, cool. To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"running_state": ""}.
local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.To read send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"local_temperature": ""}.The minimal value is -10 and the maximum value is 10 with a step size of 0.5.

Select Unit. Value can be found in the published state on the temperature_display_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_display_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_display_mode": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Operating mode (enum)

Selected program for thermostat. Value can be found in the published state on the operating_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operating_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operating_mode": NEW_VALUE}. The possible values are: manual, program, eco.

Child lock (binary)

Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.

Vacation temperature (numeric)

Vacation temperature setpoint. Value can be found in the published state on the holiday_temp_set property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"holiday_temp_set": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"holiday_temp_set": NEW_VALUE}. The minimal value is 5 and the maximum value is 35. The unit of this value is °C.

Vacation start date (text)

Supports dates starting with day or year with '. - /'. Value can be found in the published state on the vacation_start_date property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"vacation_start_date": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"vacation_start_date": NEW_VALUE}.

Vacation end date (text)

Supports dates starting with day or year with '. - /'. Value can be found in the published state on the vacation_end_date property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"vacation_end_date": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"vacation_end_date": NEW_VALUE}.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"energy": ""}. It's not possible to write (/set) this value. The unit of this value is kWh.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Window open check (binary)

Enables or disables the window open detection. Value can be found in the published state on the window_open_check property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"window_open_check": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"window_open_check": NEW_VALUE}. If value equals ON window open check is ON, if OFF OFF.

Anti frost (binary)

Enables or disables the anti-frost mode. Value can be found in the published state on the anti_frost property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"anti_frost": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"anti_frost": NEW_VALUE}. If value equals ON anti frost is ON, if OFF OFF.

Summer winter switch (binary)

Summer/winter switch. Value can be found in the published state on the summer_winter_switch property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"summer_winter_switch": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"summer_winter_switch": NEW_VALUE}. If value equals ON summer winter switch is ON, if OFF OFF.

Vacation mode (binary)

Vacation mode. Value can be found in the published state on the vacation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"vacation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"vacation_mode": NEW_VALUE}. If value equals ON vacation mode is ON, if OFF OFF.

Time sync (binary)

Time sync. Value can be found in the published state on the time_sync property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"time_sync": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"time_sync": NEW_VALUE}. If value equals ON time sync is ON, if OFF OFF.

Auto time (binary)

Auto time. Value can be found in the published state on the auto_time property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"auto_time": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"auto_time": NEW_VALUE}. If value equals ON auto time is ON, if OFF OFF.

Display active backlight (numeric)

Display active backlight. Value can be found in the published state on the display_active_backlight property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"display_active_backlight": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"display_active_backlight": NEW_VALUE}. The minimal value is 1 and the maximum value is 100. The unit of this value is %.

Display auto off (enum)

Display auto off. Value can be found in the published state on the display_auto_off property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"display_auto_off": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"display_auto_off": NEW_VALUE}. The possible values are: always_on, auto_off_after_10s, auto_off_after_30s, auto_off_after_60s.

Regulator percentage (numeric)

Regulator percentage. Value can be found in the published state on the regulator_percentage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"regulator_percentage": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"regulator_percentage": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Regulation mode (enum)

Regulation mode. Value can be found in the published state on the regulation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"regulation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"regulation_mode": NEW_VALUE}. The possible values are: off, heat, cool.

Sensor mode (enum)

Sensor mode. Value can be found in the published state on the sensor_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensor_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor_mode": NEW_VALUE}. The possible values are: air, floor, external, regulator.

Boost time set (enum)

Boost time. Value can be found in the published state on the boost_time_set property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"boost_time_set": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"boost_time_set": NEW_VALUE}. The possible values are: off, 5_min, 10_min, 15_min, 20_min, 25_min, 30_min, 35_min, 40_min, 45_min, 50_min, 55_min, 1h, 1h_5_min, 1h_10_min, 1h_15_min, 1h_20_min, 1h_25_min, 1h_30_min, 1h_35_min, 1h_40_min, 1h_45_min, 1h_50_min, 1h_55_min, 2h.

Boost time remaining (numeric)

Boost time remaining. Value can be found in the published state on the boost_time_remaining property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"boost_time_remaining": ""}. It's not possible to write (/set) this value. The unit of this value is min.

System mode (enum)

System mode. Value can be found in the published state on the system_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"system_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": NEW_VALUE}. The possible values are: 0, 1, 3, 4.

Time sync value (numeric)

Device time. Value can be found in the published state on the time_sync_value property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"time_sync_value": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"time_sync_value": NEW_VALUE}. The minimal value is 0 and the maximum value is 4294967295.

Window state (binary)

Window state. Value can be found in the published state on the window_state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"window_state": ""}. It's not possible to write (/set) this value. If value equals OPEN window state is ON, if CLOSED OFF.

Fault (enum)

Device fault. Value can be found in the published state on the fault property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"fault": ""}. It's not possible to write (/set) this value. The possible values are: no_fault, over_current_error, over_heat_error, built-in_sensor_error, air_sensor_error, floor_sensor_error.

Work days (enum)

Work days. Value can be found in the published state on the work_days property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"work_days": ""}. It's not possible to write (/set) this value. The possible values are: monday-friday_saturday-sunday, monday-saturday_sunday, no_time_off, time_off.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity": ""}. It's not possible to write (/set) this value. The unit of this value is %.
