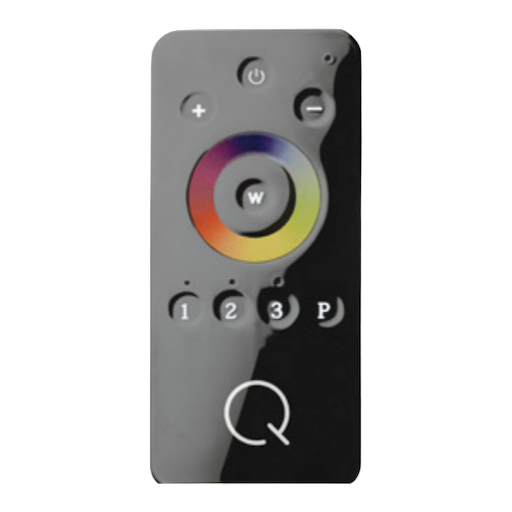

Paul Neuhaus E0040006

Model	E0040006
Vendor	Paul Neuhaus
Description	Q RGBW remote controller
Exposes	action, action_group, linkquality

Options

How to use device type specific configuration

• simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on, off, brightness_step_up, brightness_step_down, color_move, color_temperature_move, brightness_stop, brightness_move_up, brightness_move_down, color_loop_set, enhanced_move_to_hue_and_saturation.

Action group (numeric)

Group where the action was triggered on. Value can be found in the published state on the action_group property. It's not possible to read (/get) or write (/set) this value.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
