EFEKTA EFEKTA_ePST_POW_E_LR


Model	EFEKTA_ePST_POW_E_LR
Vendor	EFEKTA

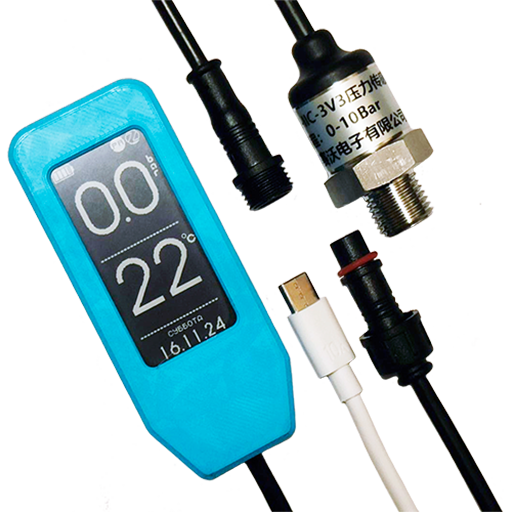

Description	Water, gas smart pressure monitor with e-ink display
Exposes	pressure, bar, psi, temperature, pressure_offset, raw_temperature_calibration, mains_voltage, battery, battery_low, reading_interval, tx_radio_power, comparison_previous_data, invert, fastmode

Options

How to use device type specific configuration

pressure_calibration: Calibrates the pressure value (absolute offset), takes into effect on next report of device. The value must be a number.
pressure_precision: Number of digits after decimal point for pressure, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Pressure (numeric)

Pressure in kPa. Value can be found in the published state on the pressure property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kPa.

Bar (numeric)

Pressure in bar. Value can be found in the published state on the bar property. It's not possible to read (/get) or write (/set) this value. The unit of this value is bar.

Psi (numeric)

Pressure in psi. Value can be found in the published state on the psi property. It's not possible to read (/get) or write (/set) this value. The unit of this value is psi.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Adjust pressure sensor. Value can be found in the published state on the pressure_offset property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"pressure_offset": NEW_VALUE}. The minimal value is -100 and the maximum value is 100. The unit of this value is kPa.

Raw temperature calibration (numeric)

Adjust temperature sensor. Value can be found in the published state on the raw_temperature_calibration property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"raw_temperature_calibration": NEW_VALUE}. The minimal value is -8192 and the maximum value is 8192. The unit of this value is raw unit.

Mains voltage (numeric)

Mains voltage. Value can be found in the published state on the mains_voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Battery low (binary)

Empty battery indicator. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Reading interval (numeric)

Setting the sensor reading interval in seconds, by default 20 seconds. Value can be found in the published state on the reading_interval property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reading_interval": NEW_VALUE}. The minimal value is 10 and the maximum value is 300. The unit of this value is sec.

Tx radio power (enum)

Set TX Radio Power, dbm. Value can be found in the published state on the tx_radio_power property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"tx_radio_power": NEW_VALUE}. The possible values are: 4dbm, 19dbm.

Comparison previous data (binary)

Enable сontrol of comparison with previous data. Value can be found in the published state on the comparison_previous_data property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comparison_previous_data": NEW_VALUE}. If value equals ON comparison previous data is ON, if OFF OFF.

Invert (enum)

Invert display color. Value can be found in the published state on the invert property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"invert": NEW_VALUE}. The possible values are: BW, WB.

Fastmode (enum)

Display refresh mode. Value can be found in the published state on the fastmode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fastmode": NEW_VALUE}. The possible values are: Fast, Ultra Fast.
