EFEKTA EFEKTA_iAQ3
Model | EFEKTA_iAQ3 |
Vendor | EFEKTA |
Description | CO2 Monitor with IPS TFT Display, outdoor temperature and humidity, date and time |
Exposes | co2, temperature, humidity, voc_index, voc_raw_data, illuminance_lux, illuminance, auto_brightness, night_onoff_backlight, night_on_backlight, night_off_backlight, rotate, long_chart_period, long_chart_period2, set_altitude, temperature_offset, humidity_offset, internal_or_external, automatic_scal, forced_recalibration, factory_reset_co2, manual_forced_recalibration, enable_gas, invert_logic_gas, high_gas, low_gas, linkquality |

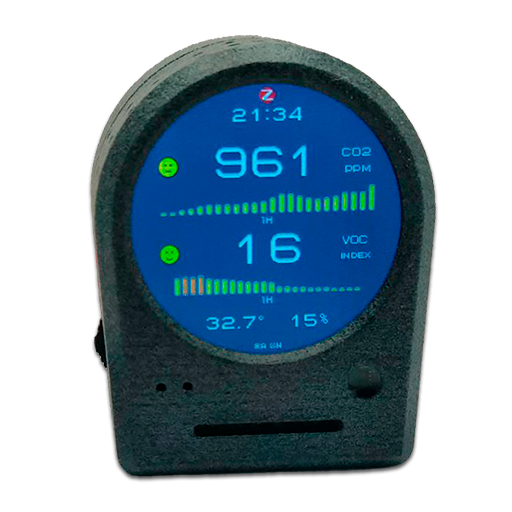

Picture | ![]() |
Options
How to use device type specific configuration
co2_calibration
: Calibrates the co2 value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_calibration
: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision
: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
humidity_calibration
: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision
: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0
and with a with a maximum value of3
illuminance_lux_calibration
: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.illuminance_calibration
: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
Exposes
CO2 (numeric)
Measured value. Value can be found in the published state on the co2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"co2": ""}
. It's not possible to write (/set
) this value. The unit of this value is ppm
.
Temperature (numeric, 1 endpoint)
Measured value of the built-in temperature sensor. Value can be found in the published state on the temperature_1
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_1": ""}
. It's not possible to write (/set
) this value. The unit of this value is °C
.
Temperature (numeric, 2 endpoint)
Measured value of the external temperature sensor. Value can be found in the published state on the temperature_2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_2": ""}
. It's not possible to write (/set
) this value. The unit of this value is °C
.
Humidity (numeric, 1 endpoint)
Measured value of the built-in humidity sensor. Value can be found in the published state on the humidity_1
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity_1": ""}
. It's not possible to write (/set
) this value. The unit of this value is %
.
Humidity (numeric, 2 endpoint)
Measured value of the external humidity sensor. Value can be found in the published state on the humidity_2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity_2": ""}
. It's not possible to write (/set
) this value. The unit of this value is %
.
Voc index (numeric)
VOC index. Value can be found in the published state on the voc_index
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is VOC Index points
.
Voc raw data (numeric)
SRAW_VOC, digital raw value. Value can be found in the published state on the voc_raw_data
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is ticks
.
Illuminance lux (numeric)
Measured illuminance in lux. Value can be found in the published state on the illuminance_lux
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is lx
.
Illuminance (numeric)
Raw measured illuminance. Value can be found in the published state on the illuminance
property. It's not possible to read (/get
) or write (/set
) this value.
Auto brightness (binary)
Enable or Disable Auto Brightness of the Display. Value can be found in the published state on the auto_brightness
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"auto_brightness": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"auto_brightness": NEW_VALUE}
. If value equals ON
auto brightness is ON, if OFF
OFF.
Night onoff backlight (binary)
Complete shutdown of the backlight at night mode. Value can be found in the published state on the night_onoff_backlight
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_onoff_backlight": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_onoff_backlight": NEW_VALUE}
. If value equals ON
night onoff backlight is ON, if OFF
OFF.
Night on backlight (numeric)
Night mode activation time. Value can be found in the published state on the night_on_backlight
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_on_backlight": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_on_backlight": NEW_VALUE}
. The minimal value is 0
and the maximum value is 23
. The unit of this value is Hr
.
Night off backlight (numeric)
Night mode deactivation time. Value can be found in the published state on the night_off_backlight
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"night_off_backlight": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"night_off_backlight": NEW_VALUE}
. The minimal value is 0
and the maximum value is 23
. The unit of this value is Hr
.
Rotate (enum)
Display rotation angle. Value can be found in the published state on the rotate
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"rotate": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"rotate": NEW_VALUE}
. The possible values are: 0
, 90
, 180
, 270
.
Long chart period (binary)
The period of plotting the CO2 level(OFF - 1H | ON - 24H). Value can be found in the published state on the long_chart_period
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"long_chart_period": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"long_chart_period": NEW_VALUE}
. If value equals ON
long chart period is ON, if OFF
OFF.
Long chart period2 (binary)
The period of plotting the VOC Index points(OFF - 1H | ON - 24H). Value can be found in the published state on the long_chart_period2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"long_chart_period2": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"long_chart_period2": NEW_VALUE}
. If value equals ON
long chart period2 is ON, if OFF
OFF.
Set altitude (numeric)
Setting the altitude above sea level (for high accuracy of the CO2 sensor). Value can be found in the published state on the set_altitude
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"set_altitude": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"set_altitude": NEW_VALUE}
. The minimal value is 0
and the maximum value is 3000
. The unit of this value is meters
.
Temperature offset (numeric)
Adjust temperature. Value can be found in the published state on the temperature_offset
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"temperature_offset": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"temperature_offset": NEW_VALUE}
. The minimal value is -50
and the maximum value is 50
. The unit of this value is °C
.
Humidity offset (numeric)
Adjust humidity. Value can be found in the published state on the humidity_offset
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"humidity_offset": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"humidity_offset": NEW_VALUE}
. The minimal value is -50
and the maximum value is 50
. The unit of this value is %
.
Internal or external (binary)
Display data from internal or external TH sensor. Value can be found in the published state on the internal_or_external
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"internal_or_external": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"internal_or_external": NEW_VALUE}
. If value equals ON
internal or external is ON, if OFF
OFF.
Automatic scal (binary)
Automatic self calibration. Value can be found in the published state on the automatic_scal
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"automatic_scal": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"automatic_scal": NEW_VALUE}
. If value equals ON
automatic scal is ON, if OFF
OFF.
Forced recalibration (binary)
Start FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the forced_recalibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"forced_recalibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"forced_recalibration": NEW_VALUE}
. If value equals ON
forced recalibration is ON, if OFF
OFF.
Factory reset co2 (binary)
Factory Reset CO2 sensor. Value can be found in the published state on the factory_reset_co2
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"factory_reset_co2": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"factory_reset_co2": NEW_VALUE}
. If value equals ON
factory reset co2 is ON, if OFF
OFF.
Manual forced recalibration (numeric)
Start Manual FRC (Perform Forced Recalibration of the CO2 Sensor). Value can be found in the published state on the manual_forced_recalibration
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"manual_forced_recalibration": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"manual_forced_recalibration": NEW_VALUE}
. The minimal value is 0
and the maximum value is 5000
. The unit of this value is ppm
.
Enable gas (binary)
Enable CO2 Gas Control. Value can be found in the published state on the enable_gas
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"enable_gas": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"enable_gas": NEW_VALUE}
. If value equals ON
enable gas is ON, if OFF
OFF.
Invert logic gas (binary)
Enable invert logic CO2 Gas Control. Value can be found in the published state on the invert_logic_gas
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"invert_logic_gas": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"invert_logic_gas": NEW_VALUE}
. If value equals ON
invert logic gas is ON, if OFF
OFF.
High gas (numeric)
Setting High CO2 Gas Border. Value can be found in the published state on the high_gas
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"high_gas": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"high_gas": NEW_VALUE}
. The minimal value is 400
and the maximum value is 5000
. The unit of this value is ppm
.
Low gas (numeric)
Setting Low CO2 Gas Border. Value can be found in the published state on the low_gas
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"low_gas": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"low_gas": NEW_VALUE}
. The minimal value is 400
and the maximum value is 5000
. The unit of this value is ppm
.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
