Linptech ES1ZZ(TY)
| Model | ES1ZZ(TY) |
| Vendor | Linptech |
| Description | mmWave Presence sensor |
| Exposes | occupancy, illuminance, target_distance, motion_detection_distance, presence_keep_time, motion_detection_sensitivity, static_detection_sensitivity, fading_time, led_indicator, linkquality |

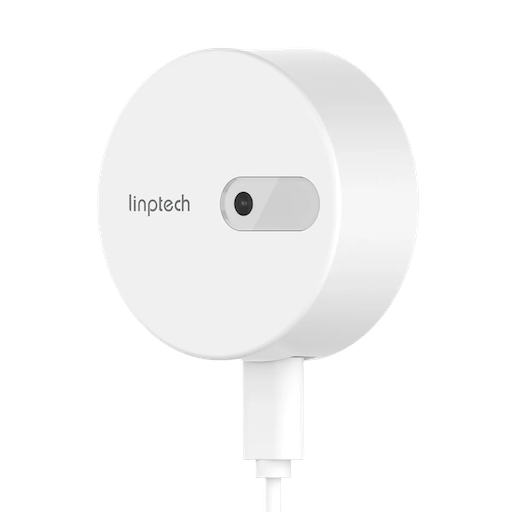

| Picture | .png) |
Options
How to use device type specific configuration
illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
Exposes
Occupancy (binary)
Presence state. Value can be found in the published state on the occupancy property. It's not possible to read (/get) or write (/set) this value. If value equals true occupancy is ON, if false OFF.
Illuminance (numeric)
Raw measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.
Target distance (numeric)
Distance to target. Value can be found in the published state on the target_distance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is cm.
Motion detection distance (numeric)
Motion detection distance. Value can be found in the published state on the motion_detection_distance property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motion_detection_distance": NEW_VALUE}. The minimal value is 0 and the maximum value is 600. The unit of this value is cm.
Presence keep time (numeric)
Presence keep time. Value can be found in the published state on the presence_keep_time property. It's not possible to read (/get) or write (/set) this value. The unit of this value is min.
Motion detection sensitivity (numeric)
Motion detection sensitivity. Value can be found in the published state on the motion_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motion_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 5.
Static detection sensitivity (numeric)
Static detection sensitivity. Value can be found in the published state on the static_detection_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"static_detection_sensitivity": NEW_VALUE}. The minimal value is 0 and the maximum value is 5.
Fading time (numeric)
Time after which the device will check again for presence. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 10000. The unit of this value is s.
Led indicator (binary)
LED Presence Indicator. Value can be found in the published state on the led_indicator property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"led_indicator": NEW_VALUE}. If value equals true led indicator is ON, if false OFF.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
