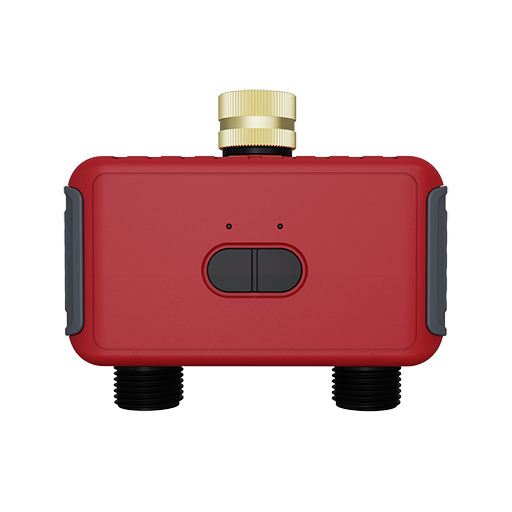

GIEX GX03


Model	GX03
Vendor	GIEX
Description	GIEX 2 zone watering timer
Exposes	valve_1, countdown_1, valve_2, countdown_2, battery, linkquality

Switch state. Value can be found in the published state on the valve_1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_1": NEW_VALUE}. If value equals ON valve 1 is ON, if OFF OFF.

Countdown 1 (numeric)

Countdown timer for valve operation. Value can be found in the published state on the countdown_1 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_1": NEW_VALUE}. The minimal value is 1 and the maximum value is 1440. The unit of this value is min.

Valve 2 (binary)

Switch state. Value can be found in the published state on the valve_2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_2": NEW_VALUE}. If value equals ON valve 2 is ON, if OFF OFF.

Countdown 2 (numeric)

Countdown timer for valve operation. Value can be found in the published state on the countdown_2 property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"countdown_2": NEW_VALUE}. The minimal value is 1 and the maximum value is 1440. The unit of this value is min.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
