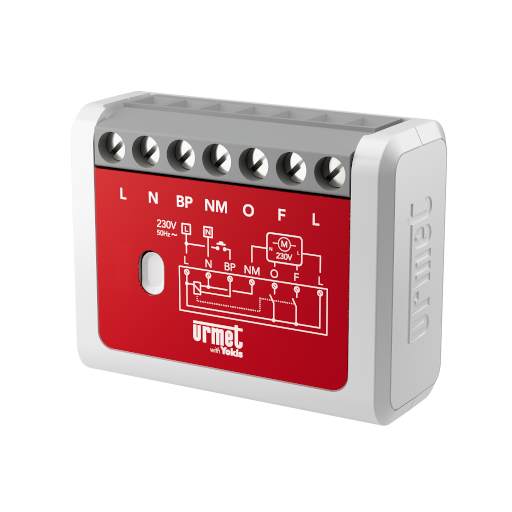

YOKIS MVR500E-UP

Model	MVR500E-UP
Vendor	YOKIS
Description	Roller shutter module 500W
Exposes	identify, cover (state, position), power_failure_mode, reset_to_factory_settings, relaunch_ble_advert, input_mode, contact_mode, last_local_command_state, last_bp_connect_state, send_press, send_release, select_input_mode, enable_short_press, enable_long_press, long_press_duration, time_between_press, enable_R12M_long_press, enable_local_config_lock, action, linkquality

• CSA product page

Options

How to use device type specific configuration

• identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30

• invert_cover: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must be true or false

• cover_position_tilt_disable_report: Do not publish set cover target position as a normal 'position' value (default false). The value must be true or false

Exposes

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Cover

The current state of this cover is in the published state under the state property (value is OPEN or CLOSE). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "OPEN"}, {"state": "CLOSE"}, {"state": "STOP"}. It's not possible to read (/get) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"position": VALUE} where VALUE is a number between 0 and 100.

Power failure mode (enum)

Define the device behavior after power failure. Value can be found in the published state on the power_failure_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_failure_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_failure_mode": NEW_VALUE}. The possible values are: last_state, off, on, blink.

Reset to factory settings (enum)

Reset setting depending on RESET ACTION value. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"reset_to_factory_settings": NEW_VALUE}. The possible values are: factory_reset, configuration_reset, network_reset.

Relaunch ble advert (enum)

Relaunch BLE advertising for 15 minutes. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"relaunch_ble_advert": NEW_VALUE}. The possible values are: relaunch_ble_advert.

Input mode (enum)

Indicate how the input should be handle: - 0 -> Unknow - 1 -> Push button - 2 -> Switch - 3 -> Relay - 4 -> FP_IN. Value can be found in the published state on the input_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"input_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"input_mode": NEW_VALUE}. The possible values are: unknown, push_button, switch, relay, fp_in.

Contact mode (enum)

Indicate the contact nature of the entry: - 0 -> NC - 1 -> NO. Value can be found in the published state on the contact_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"contact_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"contact_mode": NEW_VALUE}. The possible values are: nc, no.

Last local command state (binary)

Indicate the last known state of the local BP. Value can be found in the published state on the last_local_command_state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"last_local_command_state": ""}. It's not possible to write (/set) this value. If value equals PRESSED last local command state is ON, if RELEASED OFF.

Last bp connect state (binary)

Indicate the last known state of the Bp connect. Value can be found in the published state on the last_bp_connect_state property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"last_bp_connect_state": ""}. It's not possible to write (/set) this value. If value equals PRESSED last bp connect state is ON, if RELEASED OFF.

Send press (enum)

Send to the server cluster a button press. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"send_press": NEW_VALUE}. The possible values are: SendPress.

Send release (enum)

Send to the server cluster a button release. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"send_release": NEW_VALUE}. The possible values are: SendRelease.

Select input mode (enum)

Change the Input mode to use switch input, wired relay or simple push button. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"select_input_mode": NEW_VALUE}. The possible values are: unknown, push_button, switch, relay, fp_in.

Enable short press (binary)

Use to enable short press action. Value can be found in the published state on the enable_short_press property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enable_short_press": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_short_press": NEW_VALUE}. If value equals ON enable short press is ON, if OFF OFF.

Enable long press (binary)

Use to enable long press action. Value can be found in the published state on the enable_long_press property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enable_long_press": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_long_press": NEW_VALUE}. If value equals ON enable long press is ON, if OFF OFF.

Long press duration (numeric)

Define long Press duration in milliseconds. Value can be found in the published state on the long_press_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"long_press_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"long_press_duration": NEW_VALUE}. The minimal value is 0 and the maximum value is 5000. The unit of this value is ms.

Time between press (numeric)

Define the maximum time between 2 press to keep in a sequence (In milliseconds). Value can be found in the published state on the time_between_press property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"time_between_press": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"time_between_press": NEW_VALUE}. The minimal value is 100 and the maximum value is 600. The unit of this value is ms.

Enable R12M long press (binary)

Enable R12M Long Press action. Value can be found in the published state on the enable_R12M_long_press property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enable_R12M_long_press": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_R12M_long_press": NEW_VALUE}. If value equals ON enable R12M long press is ON, if OFF OFF.

Enable local config lock (binary)

Disable local configuration. Value can be found in the published state on the enable_local_config_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"enable_local_config_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"enable_local_config_lock": NEW_VALUE}. If value equals ON enable local config lock is ON, if OFF OFF.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: open, close, stop.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
