ElectSmart PRO-900Z

ModelPRO-900Z
VendorElectSmart
DescriptionThermostat for electric floor
Exposeschild_lock, eco_mode, eco_temperature, climate (system_mode, running_state, preset, current_heating_setpoint, local_temperature, local_temperature_calibration), deadzone_temperature, min_temperature, max_temperature, min_temperature_limit, max_temperature_limit, sensor, external_temperature_input, brightness, display_brightness, schedule_monday, schedule_tuesday, schedule_wednesday, schedule_thursday, schedule_friday, schedule_saturday, schedule_sunday, factory_reset, linkquality

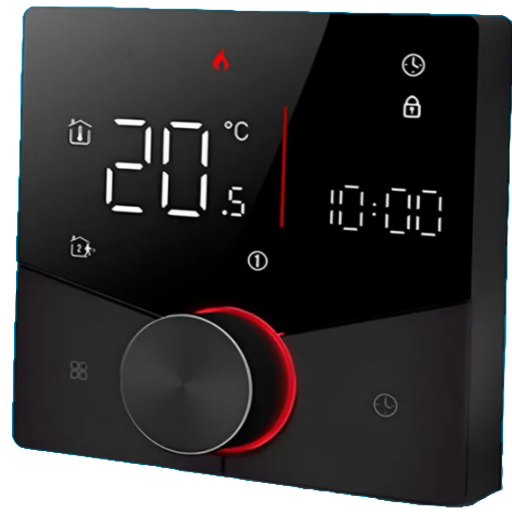

PictureElectSmart PRO-900Z

Pairing

With the device in the 'on' state, press and hold the control knob to turn the unit off. While the knob is pressed, press and hold the 'clock' button for 8 seconds. The device will now enter the pairing mode, and the zigbee signal indicator will start flashing on the display.

Exposes

Child lock (binary)

Value can be found in the published state on the child_lock property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals ON child lock is ON, if OFF OFF.

ECO mode (binary)

Default: Off. Value can be found in the published state on the eco_mode property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_mode": NEW_VALUE}. If value equals OFF eCO mode is ON, if ON OFF.

Eco temperature (numeric)

Max temperature in ECO mode. Default: 20. Value can be found in the published state on the eco_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"eco_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 30. The unit of this value is °C.

Heating in process (binary)

Value can be found in the published state on the valve_state property. It's not possible to read (/get) or write (/set) this value. If value equals false heating in process is ON, if true OFF.

Climate

This climate device supports the following features: system_mode, preset, current_heating_setpoint, local_temperature, local_temperature_calibration.

  • current_heating_setpoint: Temperature setpoint. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"current_heating_setpoint": VALUE} where VALUE is the °C between 5 and 35. Reading (/get) this attribute is not possible.
  • local_temperature: Current temperature measured on the device (in °C). Reading (/get) this attribute is not possible.
  • system_mode: Mode of this device. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"system_mode": VALUE} where VALUE is one of: off, heat. Reading (/get) this attribute is not possible.
  • preset: Mode of this device (similar to system_mode). To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": VALUE} where VALUE is one of: manual, auto. Reading (/get) this attribute is not possible.
  • local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"local_temperature_calibration": VALUE}.The minimal value is -9 and the maximum value is 9 with a step size of 1.

Deadzone temperature (numeric)

Hysteresis. Default: 1. Value can be found in the published state on the deadzone_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"deadzone_temperature": NEW_VALUE}. The minimal value is 1 and the maximum value is 5. The unit of this value is °C.

Min temperature (numeric)

Default: 5. Value can be found in the published state on the min_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_temperature": NEW_VALUE}. The minimal value is 5 and the maximum value is 15. The unit of this value is °C.

Max temperature (numeric)

Default: 35. Value can be found in the published state on the max_temperature property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature": NEW_VALUE}. The minimal value is 15 and the maximum value is 45. The unit of this value is °C.

Low temperature protection (numeric)

Default: 0. Value can be found in the published state on the min_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_temperature_limit": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is °C.

High temperature protection (numeric)

Default: 45. Value can be found in the published state on the max_temperature_limit property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_temperature_limit": NEW_VALUE}. The minimal value is 25 and the maximum value is 70. The unit of this value is °C.

Sensor (enum)

Choose which sensor to use. Default: AL. Value can be found in the published state on the sensor property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensor": NEW_VALUE}. The possible values are: IN, OU, AL.

Floor temperature (numeric)

Temperature from floor sensor. Value can be found in the published state on the external_temperature_input property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Screen brightness 06:00 - 22:00 (numeric)

0 - on for 10 seconds. Default: 6. Value can be found in the published state on the brightness property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": NEW_VALUE}. The minimal value is 0 and the maximum value is 8.

Screen brightness 22:00 - 06:00 (numeric)

0 - on for 10 seconds. Default: 3. Value can be found in the published state on the display_brightness property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"display_brightness": NEW_VALUE}. The minimal value is 0 and the maximum value is 8.

Schedule for monday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_monday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_monday": NEW_VALUE}.

Schedule for tuesday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_tuesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_tuesday": NEW_VALUE}.

Schedule for wednesday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_wednesday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_wednesday": NEW_VALUE}.

Schedule for thursday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_thursday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_thursday": NEW_VALUE}.

Schedule for friday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_friday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_friday": NEW_VALUE}.

Schedule for saturday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_saturday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_saturday": NEW_VALUE}.

Schedule for sunday (text)

Default: 06:00/20.0 11:30/20.0 13:30/20.0 17:30/20.0. Value can be found in the published state on the schedule_sunday property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"schedule_sunday": NEW_VALUE}.

Factory reset (enum)

Reset all settings to factory ones. Value can be found in the published state on the factory_reset property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"factory_reset": NEW_VALUE}. The possible values are: factory reset.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
