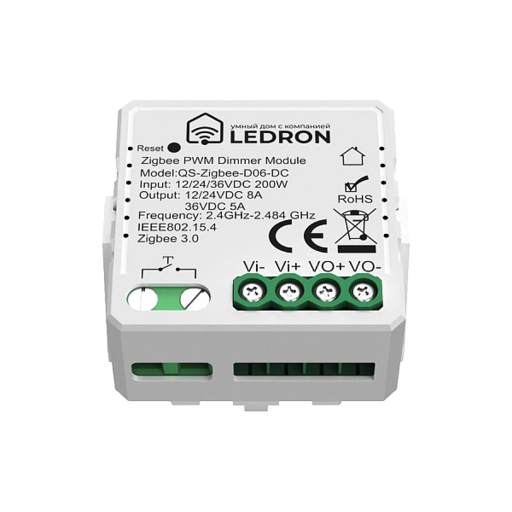

Ledron QS-Zigbee-D06-DC

Model	QS-Zigbee-D06-DC
Vendor	Ledron
Description	Dimmer 12-36v
Exposes	light (state, brightness, min_brightness, max_brightness), linkquality

Options

How to use device type specific configuration

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness, min_brightness, max_brightness.

• state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
• brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
