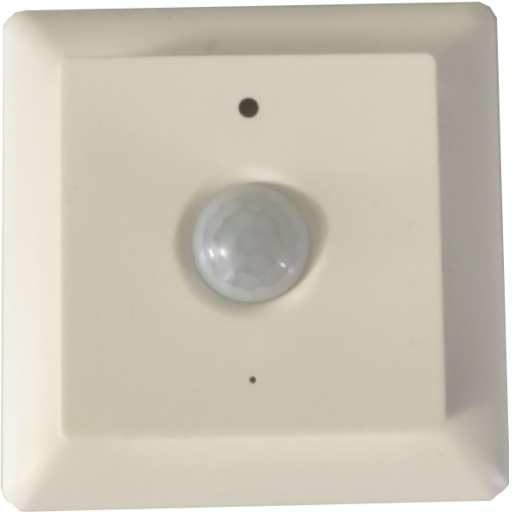

ROBB ROB_200-070-0


Model	ROB_200-070-0
Vendor	ROBB
Description	Battery powered PIR presence, temperature, humidity and light sensors
Exposes	battery, identify, occupancy, alarm_1, alarm_2, tamper, battery_low, temperature, humidity, illuminance_lux, illuminance, linkquality

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.
humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
illuminance_lux_calibration: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.
illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30
no_occupancy_since: Sends a message after the last time no occupancy (occupancy: false) was detected. When setting this for example to [10, 60] a {"no_occupancy_since": 10} will be send after 10 seconds and a {"no_occupancy_since": 60} after 60 seconds. The value must be a list of [object Object].

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Occupancy (binary)

Indicates whether the device detected occupancy. Value can be found in the published state on the occupancy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"occupancy": ""}. It's not possible to write (/set) this value. If value equals true occupancy is ON, if false OFF.

Alarm 1 (binary)

Indicates whether IAS Zone alarm 1 is active. Value can be found in the published state on the alarm_1 property. It's not possible to read (/get) or write (/set) this value. If value equals true alarm 1 is ON, if false OFF.

Alarm 2 (binary)

Indicates whether IAS Zone alarm 2 is active. Value can be found in the published state on the alarm_2 property. It's not possible to read (/get) or write (/set) this value. If value equals true alarm 2 is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery low (binary)

Indicates whether the battery of the device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Temperature (numeric, 3 endpoint)

Measured temperature value. Value can be found in the published state on the temperature_3 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_3": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Humidity (numeric, 4 endpoint)

Measured relative humidity. Value can be found in the published state on the humidity_4 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_4": ""}. It's not possible to write (/set) this value. The unit of this value is %.

Illuminance lux (numeric, 5 endpoint)

Measured illuminance in lux. Value can be found in the published state on the illuminance_lux_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance_lux_5": ""}. It's not possible to write (/set) this value. The unit of this value is lx.

Illuminance (numeric, 5 endpoint)

Raw measured illuminance. Value can be found in the published state on the illuminance_5 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"illuminance_5": ""}. It's not possible to write (/set) this value.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
