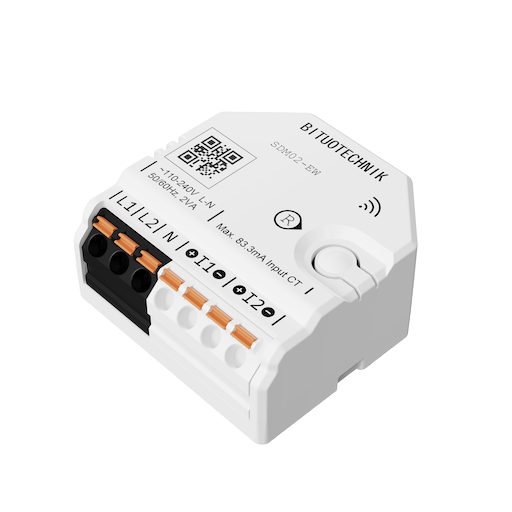

BITUO TECHNIK SDM02-U00


Model	SDM02-U00
Vendor	BITUO TECHNIK
Description	Smart energy monitor for 2P+N system
Exposes	power_phase_b, power_reactive, power_reactive_phase_b, power_apparent, power_apparent_phase_b, current_phase_b, voltage_phase_b, power_factor_phase_b, total_power, total_power_reactive, total_power_apparent, identify, switch (state), power, voltage, ac_frequency, power_factor, current, energy, produced_energy

Options

How to use device type specific configuration

power_phase_b_calibration: Calibrates the power_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
power_phase_b_precision: Number of digits after decimal point for power_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_phase_b_calibration: Calibrates the current_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
current_phase_b_precision: Number of digits after decimal point for current_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_phase_b_calibration: Calibrates the voltage_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_phase_b_precision: Number of digits after decimal point for voltage_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
ac_frequency_calibration: Calibrates the ac_frequency value (absolute offset), takes into effect on next report of device. The value must be a number.
ac_frequency_precision: Number of digits after decimal point for ac_frequency, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
identify_timeout: Sets the duration of the identification procedure in seconds (i.e., how long the device would flash).The value ranges from 1 to 30 seconds (default: 3). The value must be a number with a minimum value of 1 and with a with a maximum value of 30
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Instantaneous measured power on phase B. Value can be found in the published state on the power_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Power reactive (numeric)

Instantaneous measured reactive power. Value can be found in the published state on the power_reactive property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power reactive phase b (numeric)

Instantaneous measured reactive power on phase B. Value can be found in the published state on the power_reactive_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power apparent (numeric)

Instantaneous measured apparent power. Value can be found in the published state on the power_apparent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power apparent phase b (numeric)

Instantaneous measured apparent power on phase B. Value can be found in the published state on the power_apparent_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Current phase B (numeric)

Instantaneous measured electrical current on phase B. Value can be found in the published state on the current_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage phase B (numeric)

Measured electrical potential value on phase B. Value can be found in the published state on the voltage_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power factor phase b (numeric)

Instantaneous measured power factor on phase B. Value can be found in the published state on the power_factor_phase_b property. It's not possible to read (/get) or write (/set) this value.

Total power (numeric)

Total Active Power. Value can be found in the published state on the total_power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Total power reactive (numeric)

Total Reactive Power. Value can be found in the published state on the total_power_reactive property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Total power apparent (numeric)

Total Apparent Power. Value can be found in the published state on the total_power_apparent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Identify (enum)

Initiate device identification. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"identify": NEW_VALUE}. The possible values are: identify.

Switch

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power": ""}. It's not possible to write (/set) this value. The unit of this value is W.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is V.

AC frequency (numeric)

Measured electrical AC frequency. Value can be found in the published state on the ac_frequency property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"ac_frequency": ""}. It's not possible to write (/set) this value. The unit of this value is Hz.

Power factor (numeric)

Instantaneous measured power factor. Value can be found in the published state on the power_factor property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_factor": ""}. It's not possible to write (/set) this value.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"current": ""}. It's not possible to write (/set) this value. The unit of this value is A.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"energy": ""}. It's not possible to write (/set) this value. The unit of this value is kWh.

Produced energy (numeric)

Sum of produced energy. Value can be found in the published state on the produced_energy property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"produced_energy": ""}. It's not possible to write (/set) this value. The unit of this value is kWh.
