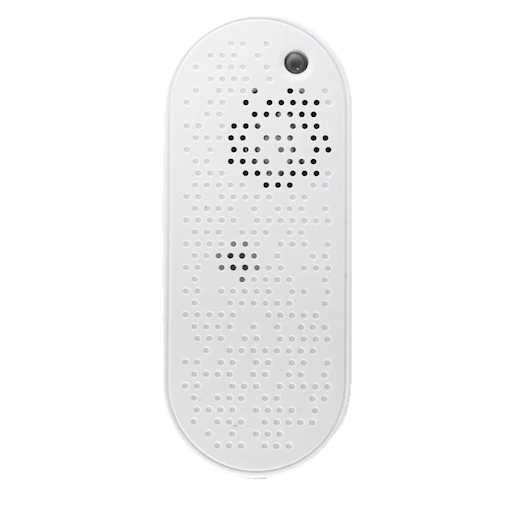

Develco SIRZB-111

Model	SIRZB-111
Vendor	Develco
Description	Customizable siren
Exposes	battery_low, test, warning, squawk, max_duration, alarm, temperature, battery, voltage, linkquality

Options

How to use device type specific configuration

• temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

• temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Battery low (binary)

Indicates if the battery of this device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Test (binary)

Indicates whether the device is being tested. Value can be found in the published state on the test property. It's not possible to read (/get) or write (/set) this value. If value equals true test is ON, if false OFF.

Warning (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"warning": {"mode": VALUE, "level": VALUE, "strobe_level": VALUE, "strobe": VALUE, "strobe_duty_cycle": VALUE, "duration": VALUE}}

• mode (enum): Mode of the warning (sound effect) allowed values: stop, burglar, fire, emergency, police_panic, fire_panic, emergency_panic
• level (enum): Sound level allowed values: low, medium, high, very_high
• strobe_level (enum): Intensity of the strobe allowed values: low, medium, high, very_high
• strobe (binary): Turn on/off the strobe (light) during warning allowed values: true or false
• strobe_duty_cycle (numeric): Length of the flash cycle max value is 10
• duration (numeric): Duration in seconds of the alarm unit is s

Squawk (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"squawk": {"state": VALUE, "level": VALUE, "strobe": VALUE}}

• state (enum): Set Squawk state allowed values: system_is_armed, system_is_disarmed
• level (enum): Sound level allowed values: low, medium, high, very_high
• strobe (binary): Turn on/off the strobe (light) for Squawk allowed values: true or false

Max duration (numeric)

Max duration of the siren. Value can be found in the published state on the max_duration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_duration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_duration": NEW_VALUE}. The minimal value is 0 and the maximum value is 900. The unit of this value is s.

Alarm (binary)

Manual start of the siren. Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"alarm": NEW_VALUE}. If value equals START alarm is ON, if OFF OFF.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Reported battery voltage in millivolts. Value can be found in the published state on the voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
