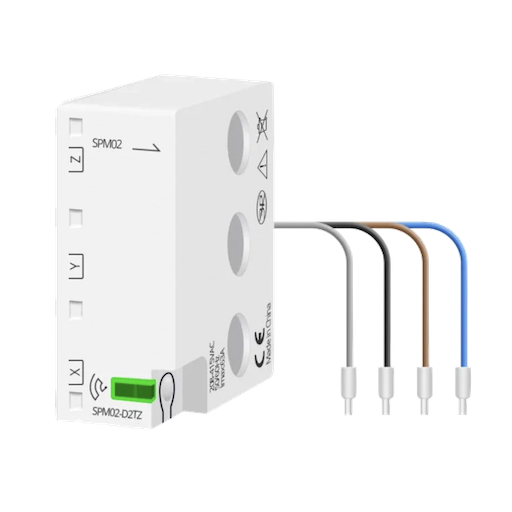

BITUO TECHNIK SPM02-U01


Model	SPM02-U01
Vendor	BITUO TECHNIK
Description	Smart energy sensor
Exposes	ac_frequency, energy, produced_energy, power, power_phase_b, power_phase_c, power_reactive, power_reactive_phase_b, power_reactive_phase_c, power_apparent, power_apparent_phase_b, power_apparent_phase_c, current, current_phase_b, current_phase_c, voltage, voltage_phase_b, voltage_phase_c, power_factor, power_factor_phase_b, power_factor_phase_c, linkquality

Options

How to use device type specific configuration

ac_frequency_calibration: Calibrates the ac_frequency value (absolute offset), takes into effect on next report of device. The value must be a number.
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
power_phase_b_calibration: Calibrates the power_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
power_phase_b_precision: Number of digits after decimal point for power_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
power_phase_c_calibration: Calibrates the power_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.
power_phase_c_precision: Number of digits after decimal point for power_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_phase_b_calibration: Calibrates the current_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
current_phase_b_precision: Number of digits after decimal point for current_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_phase_c_calibration: Calibrates the current_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.
current_phase_c_precision: Number of digits after decimal point for current_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_phase_b_calibration: Calibrates the voltage_phase_b value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_phase_b_precision: Number of digits after decimal point for voltage_phase_b, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_phase_c_calibration: Calibrates the voltage_phase_c value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_phase_c_precision: Number of digits after decimal point for voltage_phase_c, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Measured electrical AC frequency. Value can be found in the published state on the ac_frequency property. It's not possible to read (/get) or write (/set) this value. The unit of this value is Hz.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Produced energy (numeric)

Sum of produced energy. Value can be found in the published state on the produced_energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Power phase b (numeric)

Instantaneous measured power on phase B. Value can be found in the published state on the power_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Power phase c (numeric)

Instantaneous measured power on phase C. Value can be found in the published state on the power_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Power reactive (numeric)

Instantaneous measured reactive power. Value can be found in the published state on the power_reactive property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power reactive phase b (numeric)

Instantaneous measured reactive power on phase B. Value can be found in the published state on the power_reactive_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power reactive phase c (numeric)

Instantaneous measured reactive power on phase C. Value can be found in the published state on the power_reactive_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VAR.

Power apparent (numeric)

Instantaneous measured apparent power. Value can be found in the published state on the power_apparent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power apparent phase b (numeric)

Instantaneous measured apparent power on phase B. Value can be found in the published state on the power_apparent_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Power apparent phase c (numeric)

Instantaneous measured apparent power on phase C. Value can be found in the published state on the power_apparent_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is VA.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Current phase B (numeric)

Instantaneous measured electrical current on phase B. Value can be found in the published state on the current_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Current phase C (numeric)

Instantaneous measured electrical current on phase C. Value can be found in the published state on the current_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Voltage phase B (numeric)

Measured electrical potential value on phase B. Value can be found in the published state on the voltage_phase_b property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Voltage phase C (numeric)

Measured electrical potential value on phase C. Value can be found in the published state on the voltage_phase_c property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Power factor (numeric)

Instantaneous measured power factor. Value can be found in the published state on the power_factor property. It's not possible to read (/get) or write (/set) this value.

Power factor phase b (numeric)

Instantaneous measured power factor on phase B. Value can be found in the published state on the power_factor_phase_b property. It's not possible to read (/get) or write (/set) this value.

Power factor phase c (numeric)

Instantaneous measured power factor on phase C. Value can be found in the published state on the power_factor_phase_c property. It's not possible to read (/get) or write (/set) this value.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
