Sunricher SR-ZG9033TH
| Model | SR-ZG9033TH |
| Vendor | Sunricher |
| Description | Zigbee temperature and humidity sensor |
| Exposes | battery, temperature, humidity, temperature_sensor_compensation, temperature_display_unit, humidity_sensor_compensation, linkquality |

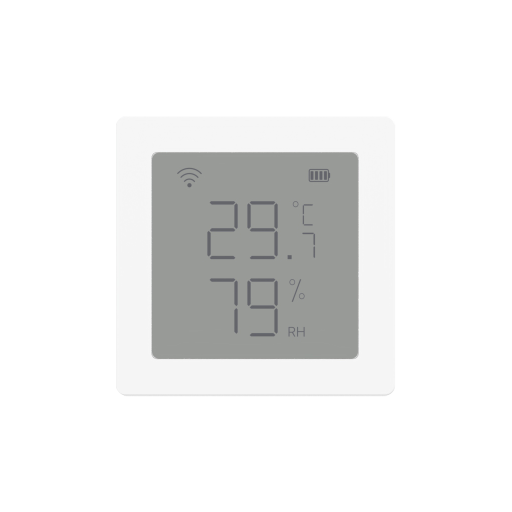

| Picture |  |
Options
How to use device type specific configuration
temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0and with a with a maximum value of3humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of0and with a with a maximum value of3
Exposes
Battery (numeric)
Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
Temperature (numeric)
Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.
Humidity (numeric, 2 endpoint)
Measured relative humidity. Value can be found in the published state on the humidity_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_2": ""}. It's not possible to write (/set) this value. The unit of this value is %.
Temperature sensor compensation (numeric, 1 endpoint)
Temperature sensor compensation (-5~+5°C). Value can be found in the published state on the temperature_sensor_compensation_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_sensor_compensation_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_sensor_compensation_1": NEW_VALUE}. The minimal value is -5 and the maximum value is 5. The unit of this value is °C.
Temperature display unit (enum, 1 endpoint)
Temperature display unit. Value can be found in the published state on the temperature_display_unit_1 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_display_unit_1": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_display_unit_1": NEW_VALUE}. The possible values are: celsius, fahrenheit.
Humidity sensor compensation (numeric, 2 endpoint)
Humidity sensor compensation (-5~+5%). Value can be found in the published state on the humidity_sensor_compensation_2 property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_sensor_compensation_2": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_sensor_compensation_2": NEW_VALUE}. The minimal value is -5 and the maximum value is 5. The unit of this value is %.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
