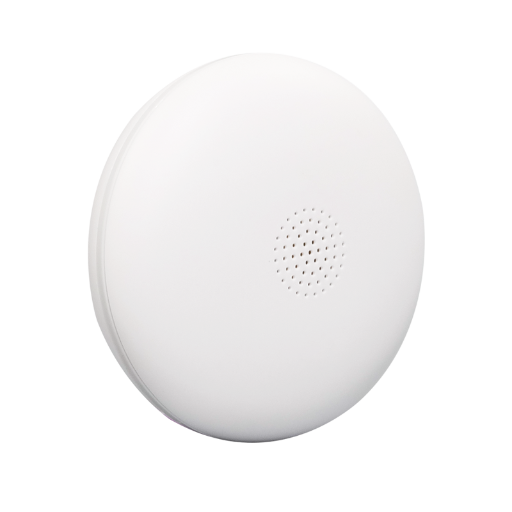

Sunricher SR-ZG9050B-WS


Model	SR-ZG9050B-WS
Vendor	Sunricher
Description	Water leakage alarm
Exposes	battery, temperature, water_leak_alarm_1, water_leak_alarm_2, tamper, battery_low, warning

Options

How to use device type specific configuration

temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature": ""}. It's not possible to write (/set) this value. The unit of this value is °C.

Water leak alarm 1 (binary)

Indicates whether the device detected a water leak (alarm_1). Value can be found in the published state on the water_leak_alarm_1 property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak alarm 1 is ON, if false OFF.

Water leak alarm 2 (binary)

Indicates whether the device detected a water leak (alarm_2). Value can be found in the published state on the water_leak_alarm_2 property. It's not possible to read (/get) or write (/set) this value. If value equals true water leak alarm 2 is ON, if false OFF.

Tamper (binary)

Indicates whether the device is tampered. Value can be found in the published state on the tamper property. It's not possible to read (/get) or write (/set) this value. If value equals true tamper is ON, if false OFF.

Battery low (binary)

Indicates whether the battery of the device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.

Warning (composite)

Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"warning": {"mode": VALUE, "level": VALUE, "strobe_level": VALUE, "strobe": VALUE, "strobe_duty_cycle": VALUE, "duration": VALUE}}

mode (enum): Mode of the warning (sound effect) allowed values: stop, burglar, fire, emergency, police_panic, fire_panic, emergency_panic
level (enum): Sound level allowed values: low, medium, high, very_high
strobe_level (enum): Intensity of the strobe allowed values: low, medium, high, very_high
strobe (binary): Turn on/off the strobe (light) during warning allowed values: true or false
strobe_duty_cycle (numeric): Length of the flash cycle max value is 10
duration (numeric): Duration in seconds of the alarm unit is s
