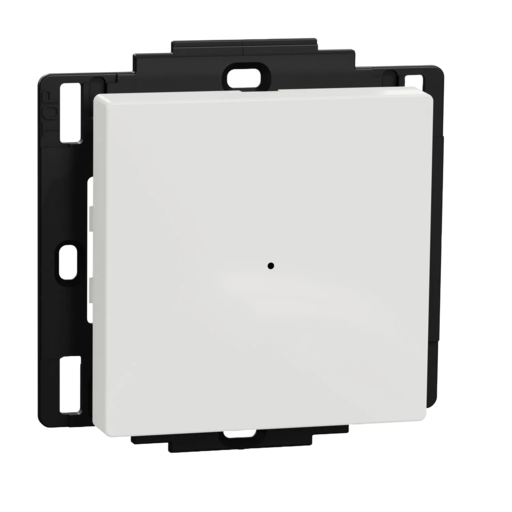

Schneider Electric WDE002906/MEG5001-0300


Model	WDE002906/MEG5001-0300
Vendor	Schneider Electric
Description	Wiser wireless switch 1-gang or 2-gang
Exposes	battery, switch_actions, action, linkquality

Notes

Pairing

To enter pairing mode, press the upper right button 3 times quickly. The LEDs will flash in orange. After a connection has been made, the LEDs will switch to green.

To reset the device, press the upper right button 3 times quickly (in less than 0.5 seconds) and then press and hold this button for at least 10 seconds. When the LEDs start flashing red, release the button. If the reset is successful, the LEDs will flash in green a few times. To change the connection mode from bluetooth to zigbee hold the button for 20 seconds instead of 10 seconds (red LED blinks faster)

Mode change

It is possible to change from 1-gang to 2-gang. To achieve this press the top left and bottom right button for 10 seconds (2 LEDs on the left and right start blinking).

To change to 1-gang a factory reset is needed.

Battery

The device uses a single CR2032.

Options

How to use device type specific configuration

simulated_brightness: Simulate a brightness value. If this device provides a brightness_move_up or brightness_move_down action it is possible to specify the update interval and delta. The action_brightness_delta indicates the delta for each interval. Example:

simulated_brightness:
  delta: 20 # delta per interval, default = 20
  interval: 200 # interval in milliseconds, default = 200

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Switch actions (enum, right endpoint)

Set Switch Action for right Button.. Value can be found in the published state on the switch_actions_right property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions_right": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions_right": NEW_VALUE}. The possible values are: light, light_opposite, dimmer, dimmer_opposite, standard_shutter, standard_shutter_opposite, schneider_shutter, schneider_shutter_opposite, scene, toggle_light, toggle_dimmer, alternate_light, alternate_dimmer, not_used.

Switch actions (enum, left endpoint)

Set Switch Action for left Button.. Value can be found in the published state on the switch_actions_left property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"switch_actions_left": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_actions_left": NEW_VALUE}. The possible values are: light, light_opposite, dimmer, dimmer_opposite, standard_shutter, standard_shutter_opposite, schneider_shutter, schneider_shutter_opposite, scene, toggle_light, toggle_dimmer, alternate_light, alternate_dimmer, not_used.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: on_right, on_left, off_right, off_left, toggle_right, toggle_left, brightness_move_to_level_right, brightness_move_to_level_left, brightness_move_up_right, brightness_move_up_left, brightness_move_down_right, brightness_move_down_left, brightness_step_up_right, brightness_step_up_left, brightness_step_down_right, brightness_step_down_left, brightness_stop_right, brightness_stop_left.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
