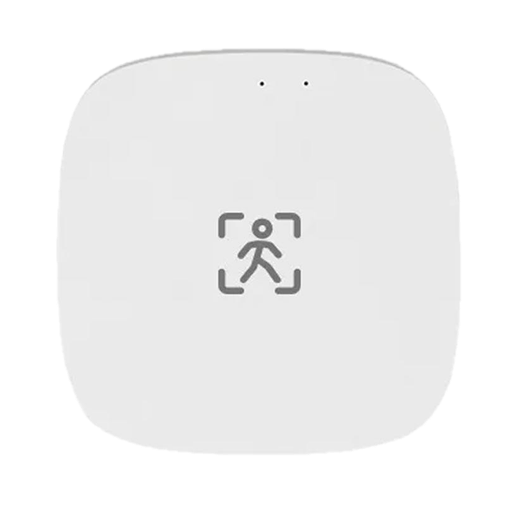

Wenzhi WZ-M100

Model	WZ-M100
Vendor	Wenzhi
Description	Human presence sensor
Exposes	illuminance_lux, presence, target_distance, sensitivity, minimum_range, maximum_range, interval_time, detection_delay, fading_time, linkquality

Options

How to use device type specific configuration

• illuminance_lux_calibration: Calibrates the illuminance_lux value (percentual offset), takes into effect on next report of device. The value must be a number.

Exposes

Illuminance (lux) (numeric)

Measured illuminance in lux. Value can be found in the published state on the illuminance_lux property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Target distance (numeric)

Distance to target. Value can be found in the published state on the target_distance property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Sensitivity (numeric)

sensitivity of the radar. Value can be found in the published state on the sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensitivity": NEW_VALUE}. The minimal value is 1 and the maximum value is 9.

Minimum range (numeric)

minimum detection range. Value can be found in the published state on the minimum_range property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"minimum_range": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Maximum range (numeric)

maximum detection range. Value can be found in the published state on the maximum_range property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"maximum_range": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is m.

Interval time (numeric)

interval_time. Value can be found in the published state on the interval_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"interval_time": NEW_VALUE}. The minimal value is 1 and the maximum value is 3600. The unit of this value is s.

Detection delay (numeric)

detection delay. Value can be found in the published state on the detection_delay property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"detection_delay": NEW_VALUE}. The minimal value is 0 and the maximum value is 10. The unit of this value is s.

Fading time (numeric)

presence timeout. Value can be found in the published state on the fading_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"fading_time": NEW_VALUE}. The minimal value is 5 and the maximum value is 1500. The unit of this value is s.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
