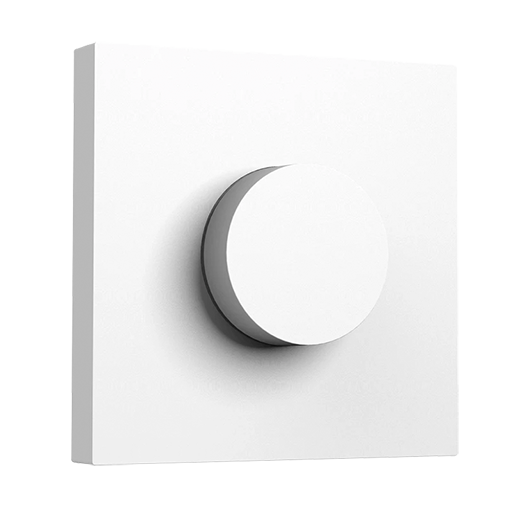

Aqara ZNXNKG02LM


Model	ZNXNKG02LM
Vendor	Aqara
Description	Smart rotary knob H1 (wireless)
Exposes	operation_mode, battery, voltage, action_rotation_button_state, action_rotation_angle, action_rotation_angle_speed, action_rotation_percent, action_rotation_percent_speed, action_rotation_time, sensitivity, action, linkquality

Press and hold the button on the device until the blue light starts blinking, release it and the pairing should begin. If you're having problems pairing, try keeping the device alive (press the button every second) after pairing started, until pairing completed

Exposes

Operation mode (enum)

Command mode is usefull for binding. Event mode is usefull for processing.. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: event, command.

Battery (numeric)

Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Voltage (numeric)

Voltage of the battery in millivolts. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mV.

Action rotation button state (enum)

Button state during rotation. Value can be found in the published state on the action_rotation_button_state property. It's not possible to read (/get) or write (/set) this value. The possible values are: released, pressed.

Action rotation angle (numeric)

Rotation angle. Value can be found in the published state on the action_rotation_angle property. It's not possible to read (/get) or write (/set) this value. The unit of this value is *.

Action rotation angle speed (numeric)

Rotation angle speed. Value can be found in the published state on the action_rotation_angle_speed property. It's not possible to read (/get) or write (/set) this value. The unit of this value is *.

Action rotation percent (numeric)

Rotation percent. Value can be found in the published state on the action_rotation_percent property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Action rotation percent speed (numeric)

Rotation percent speed. Value can be found in the published state on the action_rotation_percent_speed property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Action rotation time (numeric)

Rotation time. Value can be found in the published state on the action_rotation_time property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ms.

Sensitivity (enum)

Rotation sensitivity. Value can be found in the published state on the sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"sensitivity": NEW_VALUE}. The possible values are: low, medium, high.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: hold, single, double, release, start_rotating, rotation, stop_rotating.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
