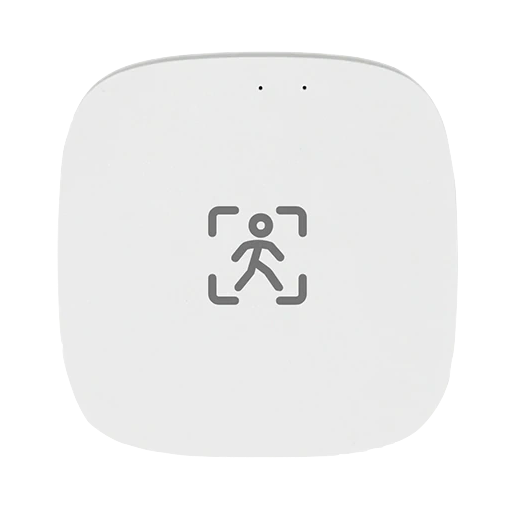

Tuya ZY-M100-24G

Model	ZY-M100-24G
Vendor	Tuya
Description	24G MmWave radar human presence motion sensor
Exposes	state, presence, distance, illuminance, motion_sensitivity, presence_sensitivity, max_range, presence_timeout, linkquality

Notes

The standard firmware of this device sends reports every second. This behaviour is not configurable, and can easily overwhelm the Zigbee network and cause problems for other devices. A solution to this is to reflash the device with a modified firmware that does not have this problem. Check https://github.com/Andrik45719/ZY-M100 for such a firmware, and instructions on how to flash the device.

Options

How to use device type specific configuration

• illuminance_calibration: Calibrates the illuminance value (percentual offset), takes into effect on next report of device. The value must be a number.

Exposes

State (enum)

Presence state. Value can be found in the published state on the state property. It's not possible to read (/get) or write (/set) this value. The possible values are: none, presence, move.

Presence (binary)

Indicates whether the device detected presence. Value can be found in the published state on the presence property. It's not possible to read (/get) or write (/set) this value. If value equals true presence is ON, if false OFF.

Distance (numeric)

Target distance. Value can be found in the published state on the distance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is m.

Illuminance (numeric)

Measured illuminance. Value can be found in the published state on the illuminance property. It's not possible to read (/get) or write (/set) this value. The unit of this value is lx.

Motion sensitivity (numeric)

Motion sensitivity. Value can be found in the published state on the motion_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"motion_sensitivity": NEW_VALUE}. The minimal value is 1 and the maximum value is 10.

Presence sensitivity (numeric)

Presence sensitivity. Value can be found in the published state on the presence_sensitivity property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"presence_sensitivity": NEW_VALUE}. The minimal value is 1 and the maximum value is 10.

Max range (numeric)

Maximum range. Value can be found in the published state on the max_range property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_range": NEW_VALUE}. The minimal value is 1.5 and the maximum value is 5.5. The unit of this value is m.

Presence timeout (numeric)

Presence timeout. Value can be found in the published state on the presence_timeout property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"presence_timeout": NEW_VALUE}. The minimal value is 1 and the maximum value is 1500. The unit of this value is s.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
