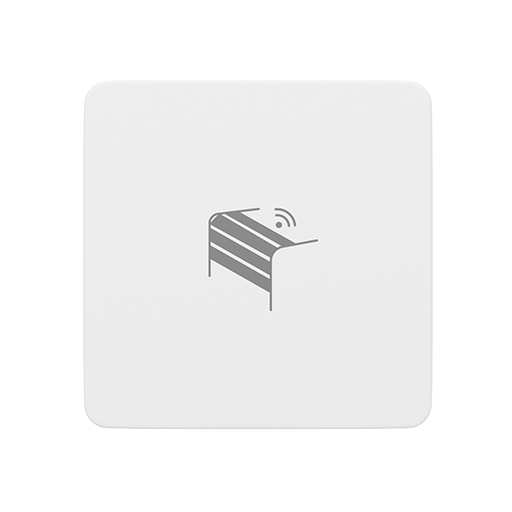

Third Reality 3RDTS01056Z


Model	3RDTS01056Z
Vendor	Third Reality
Description	Garage door tilt sensor
Exposes	battery, contact, battery_low

Press and hold the reset button for 5 seconds to factory reset the sensor, the LED light will turn red and flash in blue, indicating entering Zigbee pairing mode. It will exit Zigbee pairing mode after 3 min if not paired.

Battery

Uses two AAA batteries.

OTA updates

This device supports OTA updates, for more information see OTA updates.

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Contact (binary)

Indicates whether the device is opened or closed. Value can be found in the published state on the contact property. It's not possible to read (/get) or write (/set) this value. If value equals false contact is ON, if true OFF.

Battery low (binary)

Indicates whether the battery of the device is almost empty. Value can be found in the published state on the battery_low property. It's not possible to read (/get) or write (/set) this value. If value equals true battery low is ON, if false OFF.
