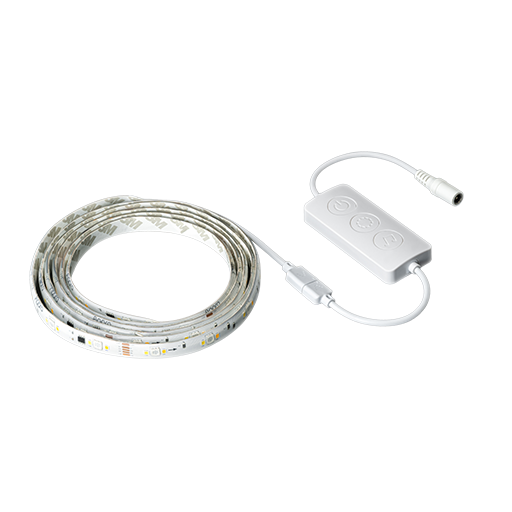

Aqara LGYCDD01LM


Model	LGYCDD01LM
Vendor	Aqara
Description	Light strip T1
Exposes	light (state, brightness, color_temp, color_xy), power_on_behavior, length, min_brightness, max_brightness, audio, audio_sensitivity, audio_effect, preset, speed
White-label	Aqara RLS-K01D

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0
color_sync: When enabled colors will be synced, e.g. if the light supports both color x/y and color temperature a conversion from color x/y to color temperature will be done when setting the x/y color (default true). The value must be true or false
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness, color_temp, color_xy.

state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.
color_temp: To control the color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color_temp": VALUE} where VALUE is a number between 153 and 370, the higher the warmer the color. To read the color temperature send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color_temp": ""}. Besides the numeric values the following values are accepted: coolest, cool, neutral, warmest.
color_xy: To control the XY color (CIE 1931 color space) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color": {"x": X_VALUE, "y": Y_VALUE}} (e.g. {"color":{"x":0.123,"y":0.123}}). To read the XY color send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color":{"x":"","y":""}}. Alternatively it is possible to set the XY color via RGB:
- {"color": {"r": R, "g": G, "b": B}} e.g. {"color":{"r":46,"g":102,"b":150}}
- {"color": {"rgb": "R,G,B"}} e.g. {"color":{"rgb":"46,102,150"}}
- {"color": {"hex": HEX}} e.g. {"color":{"hex":"#547CFF"}}

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

move: this will automatically move the value over time, to stop send value stop or 0.
step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
  "color_temp_move": 60, // Starts moving color temperature up at 60 units per second
  "color_temp_move": -40, // Starts moving color temperature down at 40 units per second
  "color_temp_move": "stop", // Stop moving color temperature
  "color_temp_move": "release", // Stop moving color temperature
  "color_temp_move": 0, // Stop moving color temperature
  "color_temp_move": "up", // Move to warmer color temperature at default rate
  "color_temp_move": 1, // Move to warmer color temperature at default rate
  "color_temp_move": "down", // Move to cooler color temperature at default rate
  "color_temp_move": {"rate": 30, "minimum": 150, "maximum": 500}, // Move with custom rate and constraints
  "color_temp_step": 99, // Increase color temperature by 99
}

Power on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: on, previous, off, inverted.

Length (numeric)

LED strip length. Value can be found in the published state on the length property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"length": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"length": NEW_VALUE}. The minimal value is 1 and the maximum value is 10. The unit of this value is m.

Min brightness (numeric)

Minimum brightness level. Value can be found in the published state on the min_brightness property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"min_brightness": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"min_brightness": NEW_VALUE}. The minimal value is 0 and the maximum value is 99. The unit of this value is %.

Max brightness (numeric)

Maximum brightness level. Value can be found in the published state on the max_brightness property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"max_brightness": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"max_brightness": NEW_VALUE}. The minimal value is 1 and the maximum value is 100. The unit of this value is %.

Audio (binary)

Enabling audio. Value can be found in the published state on the audio property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"audio": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"audio": NEW_VALUE}. If value equals ON audio is ON, if OFF OFF.

Audio sensitivity (enum)

Audio sensitivity. Value can be found in the published state on the audio_sensitivity property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"audio_sensitivity": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"audio_sensitivity": NEW_VALUE}. The possible values are: low, medium, high.

Audio effect (enum)

Audio effect. Value can be found in the published state on the audio_effect property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"audio_effect": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"audio_effect": NEW_VALUE}. The possible values are: random, blink, rainbow, wave.

Preset (numeric)

Preset index (0-6 default presets). Value can be found in the published state on the preset property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"preset": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"preset": NEW_VALUE}. The minimal value is 1 and the maximum value is 32.

Speed (numeric)

Effect speed. Value can be found in the published state on the speed property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"speed": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"speed": NEW_VALUE}. The minimal value is 1 and the maximum value is 100.
