Xiaomi MHO-C401N-z

ModelMHO-C401N-z
VendorXiaomi
DescriptionE-Ink temperature & humidity sensor with custom firmware (pvxx/ZigbeeTLc)
Exposesbattery, temperature, humidity, temperature_display_mode, smiley, temperature_calibration, humidity_calibration, comfort_temperature_min, comfort_temperature_max, comfort_humidity_min, comfort_humidity_max, measurement_interval, linkquality

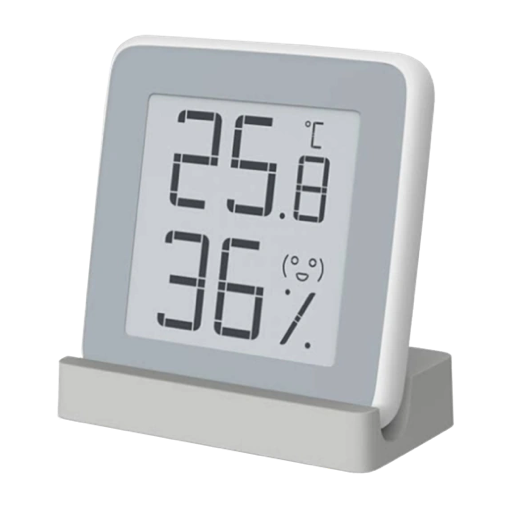

PictureXiaomi MHO-C401N-z

Notes

Originally this device does not support Zigbee (only Bluetooth). To use this device with Zigbee2MQTT a custom firmware has to be flashed which is explained here. This firmware converts the device from Bluetooth to Zigbee. Requires firmware v0.1.2.1 or newer!

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

  • temperature_calibration: Calibrates the temperature value (absolute offset), takes into effect on next report of device. The value must be a number.

  • temperature_precision: Number of digits after decimal point for temperature, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

  • humidity_calibration: Calibrates the humidity value (absolute offset), takes into effect on next report of device. The value must be a number.

  • humidity_precision: Number of digits after decimal point for humidity, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3

Exposes

Battery (numeric)

Remaining battery in %. Value can be found in the published state on the battery property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"battery": ""}. It's not possible to write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Temperature (numeric)

Measured temperature value. Value can be found in the published state on the temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Humidity (numeric)

Measured relative humidity. Value can be found in the published state on the humidity property. It's not possible to read (/get) or write (/set) this value. The unit of this value is %.

Temperature display mode (enum)

The units of the temperature displayed on the device screen.. Value can be found in the published state on the temperature_display_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_display_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_display_mode": NEW_VALUE}. The possible values are: celsius, fahrenheit.

Smiley (binary)

Whether to show a smiley on the device screen.. Value can be found in the published state on the smiley property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"smiley": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"smiley": NEW_VALUE}. If value equals SHOW smiley is ON, if HIDE OFF.

Temperature calibration (numeric)

The temperature calibration, in 0.01° steps.. Value can be found in the published state on the temperature_calibration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"temperature_calibration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"temperature_calibration": NEW_VALUE}. The minimal value is -12.7 and the maximum value is 12.7. The unit of this value is °C.

Humidity calibration (numeric)

The humidity offset is set in 0.01 % steps.. Value can be found in the published state on the humidity_calibration property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"humidity_calibration": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"humidity_calibration": NEW_VALUE}. The minimal value is -12.7 and the maximum value is 12.7. The unit of this value is %.

Comfort temperature min (numeric)

Comfort parameters/Temperature minimum, in 1°C steps.. Value can be found in the published state on the comfort_temperature_min property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"comfort_temperature_min": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_temperature_min": NEW_VALUE}. The minimal value is -127 and the maximum value is 127. The unit of this value is °C.

Comfort temperature max (numeric)

Comfort parameters/Temperature maximum, in 1°C steps.. Value can be found in the published state on the comfort_temperature_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"comfort_temperature_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_temperature_max": NEW_VALUE}. The minimal value is -127 and the maximum value is 127. The unit of this value is °C.

Comfort humidity min (numeric)

Comfort parameters/Humidity minimum, in 1% steps.. Value can be found in the published state on the comfort_humidity_min property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"comfort_humidity_min": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_humidity_min": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Comfort humidity max (numeric)

Comfort parameters/Humidity maximum, in 1% steps.. Value can be found in the published state on the comfort_humidity_max property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"comfort_humidity_max": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"comfort_humidity_max": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.

Measurement interval (numeric)

Measurement interval, default 10 seconds.. Value can be found in the published state on the measurement_interval property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"measurement_interval": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"measurement_interval": NEW_VALUE}. The minimal value is 3 and the maximum value is 255. The unit of this value is s.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
