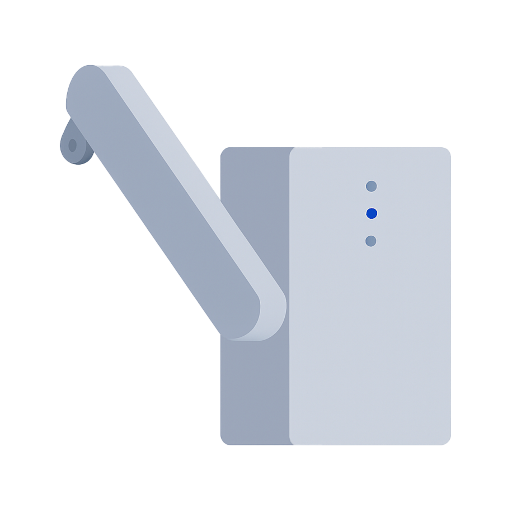

PushOk Hardware POK016
Model | POK016 |
Vendor | PushOk Hardware |
Description | Battery powered window opener |
Exposes | cover (state, position), battery, voltage, force_level, status |
Picture | ![]() |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
invert_cover
: Inverts the cover position, false: open=100,close=0, true: open=0,close=100 (default false). The value must betrue
orfalse
cover_position_tilt_disable_report
: Do not publish set cover target position as a normal 'position' value (default false). The value must betrue
orfalse
Exposes
Cover
The current state of this cover is in the published state under the state
property (value is OPEN
or CLOSE
). To control this cover publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "OPEN"}
, {"state": "CLOSE"}
, {"state": "STOP"}
. It's not possible to read (/get
) this value. To change the position publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"position": VALUE}
where VALUE
is a number between 0
and 100
.
Battery (numeric)
Remaining battery in %. Value can be found in the published state on the battery
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"battery": ""}
. It's not possible to write (/set
) this value. The minimal value is 0
and the maximum value is 100
. The unit of this value is %
.
Voltage (numeric)
Reported battery voltage in millivolts. Value can be found in the published state on the voltage
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"voltage": ""}
. It's not possible to write (/set
) this value. The unit of this value is mV
.
Force level (enum)
Force level at which the window stops. Value can be found in the published state on the force_level
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"force_level": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"force_level": NEW_VALUE}
. The possible values are: low
, mid
, high
.
Status (enum)
Actual window status. Value can be found in the published state on the status
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"status": ""}
. It's not possible to write (/set
) this value. The possible values are: off
, on
, moving
, stuck
, middle
.
