Aqara QBKG17LM
Model | QBKG17LM |
Vendor | Aqara |
Description | Smart wall switch T1 (no neutral, single rocker) |
Exposes | switch (state), device_temperature, power_outage_count, power_outage_memory, operation_mode, led_disabled_night, flip_indicator_light, action, linkquality |

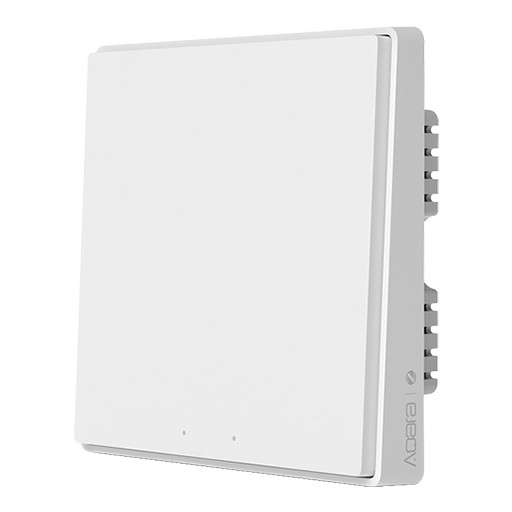

Picture | ![]() |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
device_temperature_calibration
: Calibrates the device_temperature value (absolute offset), takes into effect on next report of device. The value must be a number.state_action
: State actions will also be published as 'action' when true (default false). The value must betrue
orfalse
Exposes
Switch
The current state of this switch is in the published state under the state
property (value is ON
or OFF
). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"state": "ON"}
, {"state": "OFF"}
or {"state": "TOGGLE"}
. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"state": ""}
.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time
to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time
property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time
and off_wait_time
to work Examples : {"state" : "ON", "on_time": 300}
, {"state" : "ON", "on_time": 300, "off_wait_time": 120}
.
Device temperature (numeric)
Temperature of the device. Value can be found in the published state on the device_temperature
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is °C
.
Power outage count (numeric)
Number of power outages (since last pairing). Value can be found in the published state on the power_outage_count
property. It's not possible to read (/get
) or write (/set
) this value.
Power outage memory (binary)
Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_outage_memory
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_outage_memory": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_outage_memory": NEW_VALUE}
. If value equals true
power outage memory is ON, if false
OFF.
Operation mode (enum)
Decoupled mode for a button. Value can be found in the published state on the operation_mode
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"operation_mode": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"operation_mode": NEW_VALUE}
. The possible values are: decoupled
, control_relay
.
Led disabled night (binary)
Enables/disables LED indicator at night. Value can be found in the published state on the led_disabled_night
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"led_disabled_night": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"led_disabled_night": NEW_VALUE}
. If value equals true
led disabled night is ON, if false
OFF.
Flip indicator light (binary)
After turn on, the indicator light turns on while switch is off, and vice versa. Value can be found in the published state on the flip_indicator_light
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"flip_indicator_light": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"flip_indicator_light": NEW_VALUE}
. If value equals ON
flip indicator light is ON, if OFF
OFF.
Action (enum)
Triggered action (e.g. a button click). Value can be found in the published state on the action
property. It's not possible to read (/get
) or write (/set
) this value. The possible values are: single
, double
.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
