SONOFF TRVZB
| Model | TRVZB |
| Vendor | SONOFF |
| Description | Zigbee thermostatic radiator valve |
| Exposes | climate (occupied_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state), battery, child_lock, open_window, frost_protection_temperature, idle_steps, closing_steps, valve_opening_limit_voltage, valve_closing_limit_voltage, valve_motor_running_voltage, valve_opening_degree, valve_closing_degree, schedule, linkquality |

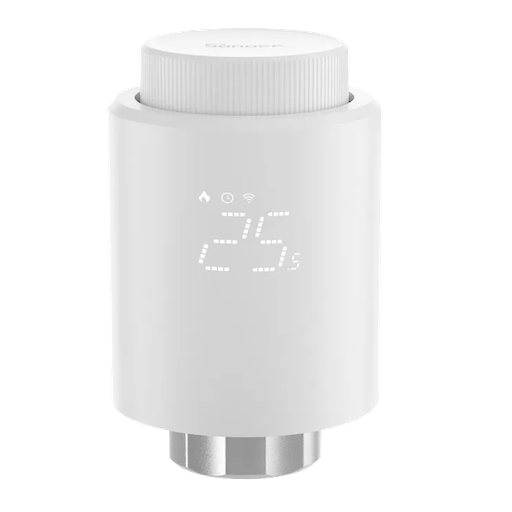

| Picture |  |
Notes
Pairing
To pair the device you first need to have it powered, attached to the valve and displaying the temperature.
If the device is showing FS or RD press the button on the top of the unit and it should now show ,,7
Once this stops flashing hold the top button for about 5 seconds at which point the unit should now show the temperature.
Keep turning the dial counter-clockwise unil the display shows OF and finally hold down the top button for 3 seconds.
You should now see a flashing signal icon and it will try and pair.
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
thermostat_unit: Controls the temperature unit of the thermostat (default celsius). The value must be one ofcelsius,fahrenheit
Exposes
Climate
This climate device supports the following features: occupied_heating_setpoint, local_temperature, local_temperature_calibration, system_mode, running_state.
occupied_heating_setpoint: Temperature setpoint. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/setwith payload{"occupied_heating_setpoint": VALUE}whereVALUEis the °C between4and35. To read send a message tozigbee2mqtt/FRIENDLY_NAME/getwith payload{"occupied_heating_setpoint": ""}.local_temperature: Current temperature measured on the device (in °C). To read send a message tozigbee2mqtt/FRIENDLY_NAME/getwith payload{"local_temperature": ""}.system_mode: Mode of the thermostat. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/setwith payload{"system_mode": VALUE}whereVALUEis one of:off,auto,heat. To read send a message tozigbee2mqtt/FRIENDLY_NAME/getwith payload{"system_mode": ""}.running_state: The current running state. Possible values are:idle,heat. To read send a message tozigbee2mqtt/FRIENDLY_NAME/getwith payload{"running_state": ""}.local_temperature_calibration: Offset to add/subtract to the local temperature. To control publish a message to topiczigbee2mqtt/FRIENDLY_NAME/setwith payload{"local_temperature_calibration": VALUE}.To read send a message tozigbee2mqtt/FRIENDLY_NAME/getwith payload{"local_temperature": ""}.The minimal value is-12.8and the maximum value is12.7with a step size of0.2.
Battery (numeric)
Remaining battery in %, can take up to 24 hours before reported. Value can be found in the published state on the battery property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
Child lock (binary)
Enables/disables physical input on the device. Value can be found in the published state on the child_lock property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"child_lock": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"child_lock": NEW_VALUE}. If value equals LOCK child lock is ON, if UNLOCK OFF.
Open window (binary)
Automatically turns off the radiator when local temperature drops by more than 1.5°C in 4.5 minutes.. Value can be found in the published state on the open_window property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"open_window": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"open_window": NEW_VALUE}. If value equals ON open window is ON, if OFF OFF.
Frost protection temperature (numeric)
Minimum temperature at which to automatically turn on the radiator, if system mode is off, to prevent pipes freezing.. Value can be found in the published state on the frost_protection_temperature property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"frost_protection_temperature": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"frost_protection_temperature": NEW_VALUE}. The minimal value is 4 and the maximum value is 35. The unit of this value is °C.
Idle steps (numeric)
Number of steps used for calibration (no-load steps). Value can be found in the published state on the idle_steps property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"idle_steps": ""}. It's not possible to write (/set) this value.
Closing steps (numeric)
Number of steps it takes to close the valve. Value can be found in the published state on the closing_steps property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"closing_steps": ""}. It's not possible to write (/set) this value.
Valve opening limit voltage (numeric)
Valve opening limit voltage. Value can be found in the published state on the valve_opening_limit_voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_opening_limit_voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.
Valve closing limit voltage (numeric)
Valve closing limit voltage. Value can be found in the published state on the valve_closing_limit_voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_closing_limit_voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.
Valve motor running voltage (numeric)
Valve motor running voltage. Value can be found in the published state on the valve_motor_running_voltage property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_motor_running_voltage": ""}. It's not possible to write (/set) this value. The unit of this value is mV.
Valve opening degree (numeric)
Valve open position (percentage) control. If the opening degree is set to 100%, the valve is fully open when it is opened. If the opening degree is set to 0%, the valve is fully closed when it is opened, and the default value is 100%. Note: only version v1.1.4 or higher is supported.. Value can be found in the published state on the valve_opening_degree property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_opening_degree": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_opening_degree": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
Valve closing degree (numeric)
Valve closed position (percentage) control. If the closing degree is set to 100%, the valve is fully closed when it is closed. If the closing degree is set to 0%, the valve is fully opened when it is closed, and the default value is 100%. Note: Only version v1.1.4 or higher is supported.. Value can be found in the published state on the valve_closing_degree property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"valve_closing_degree": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"valve_closing_degree": NEW_VALUE}. The minimal value is 0 and the maximum value is 100. The unit of this value is %.
Schedule (composite)
The preset heating schedule to use when the system mode is set to "auto" (indicated with ⏲ on the TRV). Up to 6 transitions can be defined per day, where a transition is expressed in the format 'HH:mm/temperature', each separated by a space. The first transition for each day must start at 00:00 and the valid temperature range is 4-35°C (in 0.5°C steps). The temperature will be set at the time of the first transition until the time of the next transition, e.g. '04:00/20 10:00/25' will result in the temperature being set to 20°C at 04:00 until 10:00, when it will change to 25°C.. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"weekly_schedule": {"sunday": VALUE, "monday": VALUE, "tuesday": VALUE, "wednesday": VALUE, "thursday": VALUE, "friday": VALUE, "saturday": VALUE}}
sunday(text)monday(text)tuesday(text)wednesday(text)thursday(text)friday(text)saturday(text)
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
