Aqara ZNCJMB14LM
| Model | ZNCJMB14LM |
| Vendor | Aqara |
| Description | Smart touch panel S1 |
| Exposes | switch (state), standby_enabled, theme, beep_volume, lcd_brightness, language, screen_saver_style, standby_time, font_size, lcd_auto_brightness_enabled, homepage, screen_saver_enabled, standby_lcd_brightness, available_switches, switch_1_text_icon, switch_2_text_icon, switch_3_text_icon, linkquality |

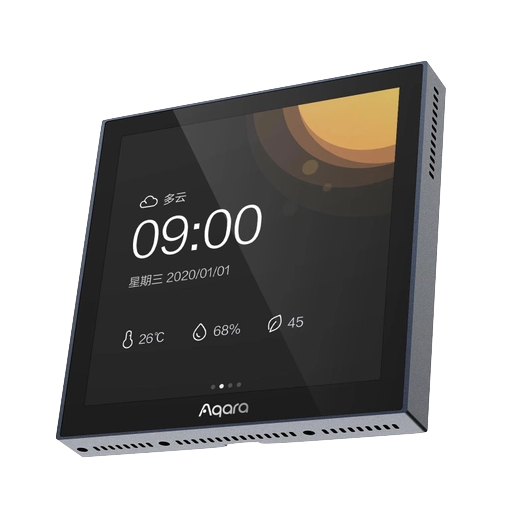

| Picture |  |
Notes
Pairing
On initial boot, the device will display a message "Waiting for accessing the network" permit join and the device will be added.
If the device is already part of a network, swipe down from the top of the screen to access the Settings panel (password may be required), navigate to "Advanced", navigate to "Access New Gateway" and confirm with "Ok". Once confirmed, proceed as per initial boot.
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
state_action: State actions will also be published as 'action' when true (default false). The value must betrueorfalse
Exposes
Switch (left endpoint)
The current state of this switch is in the published state under the state_left property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_left": "ON"}, {"state_left": "OFF"} or {"state_left": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_left": ""}.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.
Switch (center endpoint)
The current state of this switch is in the published state under the state_center property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_center": "ON"}, {"state_center": "OFF"} or {"state_center": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_center": ""}.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.
Switch (right endpoint)
The current state of this switch is in the published state under the state_right property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state_right": "ON"}, {"state_right": "OFF"} or {"state_right": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state_right": ""}.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.
Standby enabled (binary)
Enable standby. Value can be found in the published state on the standby_enabled property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"standby_enabled": NEW_VALUE}. If value equals true standby enabled is ON, if false OFF.
Theme (enum)
Display theme. Value can be found in the published state on the theme property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"theme": NEW_VALUE}. The possible values are: classic, concise.
Beep volume (enum)
Beep volume. Value can be found in the published state on the beep_volume property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"beep_volume": NEW_VALUE}. The possible values are: mute, low, medium, high.
Lcd brightness (numeric)
LCD brightness (will not persist if auto-brightness is enabled). Value can be found in the published state on the lcd_brightness property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"lcd_brightness": NEW_VALUE}. The minimal value is 1 and the maximum value is 100. The unit of this value is %.
Language (enum)
Interface language. Value can be found in the published state on the language property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"language": NEW_VALUE}. The possible values are: chinese, english.
Screen saver style (enum)
Screen saver style. Value can be found in the published state on the screen_saver_style property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"screen_saver_style": NEW_VALUE}. The possible values are: classic, analog clock.
Standby time (numeric)
Display standby time. Value can be found in the published state on the standby_time property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"standby_time": NEW_VALUE}. The minimal value is 0 and the maximum value is 65534. The unit of this value is s.
Font size (enum)
Display font size. Value can be found in the published state on the font_size property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"font_size": NEW_VALUE}. The possible values are: small, medium, large.
Lcd auto brightness enabled (binary)
Enable LCD auto brightness. Value can be found in the published state on the lcd_auto_brightness_enabled property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"lcd_auto_brightness_enabled": NEW_VALUE}. If value equals true lcd auto brightness enabled is ON, if false OFF.
Homepage (enum)
Default display homepage. Value can be found in the published state on the homepage property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"homepage": NEW_VALUE}. The possible values are: scene, feel, thermostat, switch.
Screen saver enabled (binary)
Enable screen saver. Value can be found in the published state on the screen_saver_enabled property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"screen_saver_enabled": NEW_VALUE}. If value equals true screen saver enabled is ON, if false OFF.
Standby lcd brightness (numeric)
Standby LCD brightness. Value can be found in the published state on the standby_lcd_brightness property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"standby_lcd_brightness": NEW_VALUE}. The minimal value is 1 and the maximum value is 100. The unit of this value is %.
Available switches (enum)
Control which switches are available in the switches screen (none disables switches screen). Value can be found in the published state on the available_switches property. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"available_switches": NEW_VALUE}. The possible values are: none, 1, 2, 3, 1 and 2, 1 and 3, 2 and 3, all.
Switch 1 text icon (composite)
Switch 1 text and icon. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_1_text_icon": {"switch_1_icon": VALUE, "switch_1_text": VALUE}}
switch_1_icon(enum): Icon allowed values:1,2,3,4,5,6,7,8,9,10,11switch_1_text(text): Text
Switch 2 text icon (composite)
Switch 2 text and icon. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_2_text_icon": {"switch_2_icon": VALUE, "switch_2_text": VALUE}}
switch_2_icon(enum): Icon allowed values:1,2,3,4,5,6,7,8,9,10,11switch_2_text(text): Text
Switch 3 text icon (composite)
Switch 3 text and icon. Can be set by publishing to zigbee2mqtt/FRIENDLY_NAME/set with payload {"switch_3_text_icon": {"switch_3_icon": VALUE, "switch_3_text": VALUE}}
switch_3_icon(enum): Icon allowed values:1,2,3,4,5,6,7,8,9,10,11switch_3_text(text): Text
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
