Aqara ZNDDQDQ12LM
Model | ZNDDQDQ12LM |
Vendor | Aqara |
Description | T1 light strip controller |
Exposes | light (state, brightness, color_temp), power_outage_count, device_temperature, power_outage_memory, linkquality |

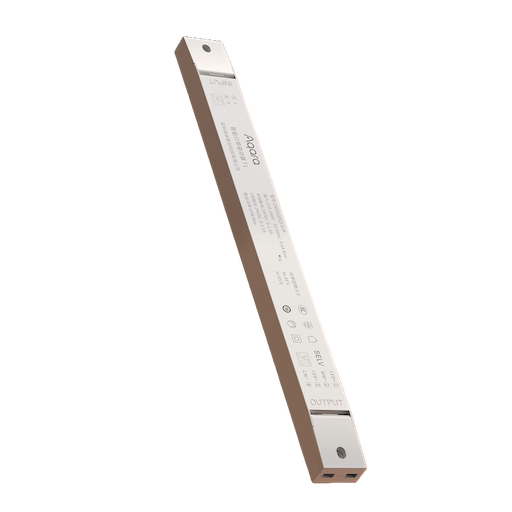

Picture | ![]() |
OTA updates
This device supports OTA updates, for more information see OTA updates.
Options
How to use device type specific configuration
device_temperature_calibration
: Calibrates the device_temperature value (absolute offset), takes into effect on next report of device. The value must be a number.transition
: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to0
(no transition). The value must be a number with a minimum value of0
color_sync
: When enabled colors will be synced, e.g. if the light supports both color x/y and color temperature a conversion from color x/y to color temperature will be done when setting the x/y color (default true). The value must betrue
orfalse
state_action
: State actions will also be published as 'action' when true (default false). The value must betrue
orfalse
Exposes
Light
This light supports the following features: state
, brightness
, color_temp
.
state
: To control the state publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"state": "ON"}
,{"state": "OFF"}
or{"state": "TOGGLE"}
. To read the state send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"state": ""}
.brightness
: To control the brightness publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"brightness": VALUE}
whereVALUE
is a number between0
and254
. To read the brightness send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"brightness": ""}
.color_temp
: To control the color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topiczigbee2mqtt/FRIENDLY_NAME/set
with payload{"color_temp": VALUE}
whereVALUE
is a number between153
and370
, the higher the warmer the color. To read the color temperature send a message tozigbee2mqtt/FRIENDLY_NAME/get
with payload{"color_temp": ""}
. Besides the numeric values the following values are accepted:coolest
,cool
,neutral
,warmest
.
On with timed off
When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time
to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time
property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time
and off_wait_time
to work Examples : {"state" : "ON", "on_time": 300}
, {"state" : "ON", "on_time": 300, "off_wait_time": 120}
.
Transition
For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition
to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}
, {"color_temp":241,"transition":1}
.
Moving/stepping
Instead of setting a value (e.g. brightness) directly it is also possible to:
- move: this will automatically move the value over time, to stop send value
stop
or0
. - step: this will increment/decrement the current value by the given one.
The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set
NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff
/brightness_step_onoff
{
"brightness_move": -40, // Starts moving brightness down at 40 units per second
"brightness_move": 0, // Stop moving brightness
"brightness_step": 40 // Increases brightness by 40
"color_temp_move": 60, // Starts moving color temperature up at 60 units per second
"color_temp_move": "stop", // Stop moving color temperature
"color_temp_step": 99, // Increase color temperature by 99
}
Power outage count (numeric)
Number of power outages (since last pairing). Value can be found in the published state on the power_outage_count
property. It's not possible to read (/get
) or write (/set
) this value.
Device temperature (numeric)
Temperature of the device. Value can be found in the published state on the device_temperature
property. It's not possible to read (/get
) or write (/set
) this value. The unit of this value is °C
.
Power outage memory (binary)
Enable/disable the power outage memory, this recovers the on/off mode after power failure. Value can be found in the published state on the power_outage_memory
property. To read (/get
) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get
with payload {"power_outage_memory": ""}
. To write (/set
) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set
with payload {"power_outage_memory": NEW_VALUE}
. If value equals true
power outage memory is ON, if false
OFF.
Linkquality (numeric)
Link quality (signal strength). Value can be found in the published state on the linkquality
property. It's not possible to read (/get
) or write (/set
) this value. The minimal value is 0
and the maximum value is 255
. The unit of this value is lqi
.
