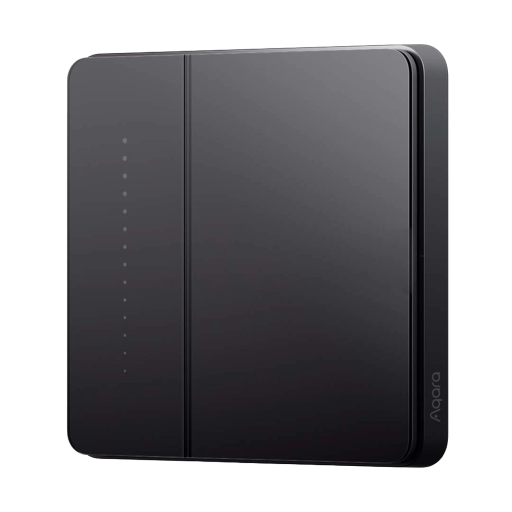

Aqara ZNQBKG42LM


Model	ZNQBKG42LM
Vendor	Aqara
Description	Smart wall switch Z1 Pro (single rocker)
Exposes	switch (state), device_temperature, power_outage_count, power_on_behavior, operation_mode, lock_relay, energy, voltage, current, power, click_mode, action_slide_time, action_slide_speed, action_slide_relative_displacement, action_slide_time_delta, mode_switch, action, linkquality

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

device_temperature_calibration: Calibrates the device_temperature value (absolute offset), takes into effect on next report of device. The value must be a number.
energy_calibration: Calibrates the energy value (percentual offset), takes into effect on next report of device. The value must be a number.
energy_precision: Number of digits after decimal point for energy, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
voltage_calibration: Calibrates the voltage value (percentual offset), takes into effect on next report of device. The value must be a number.
voltage_precision: Number of digits after decimal point for voltage, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
current_calibration: Calibrates the current value (percentual offset), takes into effect on next report of device. The value must be a number.
current_precision: Number of digits after decimal point for current, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
power_calibration: Calibrates the power value (percentual offset), takes into effect on next report of device. The value must be a number.
power_precision: Number of digits after decimal point for power, takes into effect on next report of device. This option can only decrease the precision, not increase it. The value must be a number with a minimum value of 0 and with a with a maximum value of 3
state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

The current state of this switch is in the published state under the state property (value is ON or OFF). To control this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the current state of this switch publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the switch will not answer to other on with timed off commands. Support depends on the switch firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Device temperature (numeric)

Temperature of the device. Value can be found in the published state on the device_temperature property. It's not possible to read (/get) or write (/set) this value. The unit of this value is °C.

Power outage count (numeric)

Number of power outages (since last pairing). Value can be found in the published state on the power_outage_count property. It's not possible to read (/get) or write (/set) this value.

Power on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: on, previous, off, inverted.

Operation mode (enum)

Decoupled mode for a button. Value can be found in the published state on the operation_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"operation_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"operation_mode": NEW_VALUE}. The possible values are: decoupled, control_relay.

Lock relay (binary)

Locks relay and prevents it from operating. Value can be found in the published state on the lock_relay property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"lock_relay": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"lock_relay": NEW_VALUE}. If value equals true lock relay is ON, if false OFF.

Energy (numeric)

Sum of consumed energy. Value can be found in the published state on the energy property. It's not possible to read (/get) or write (/set) this value. The unit of this value is kWh.

Voltage (numeric)

Measured electrical potential value. Value can be found in the published state on the voltage property. It's not possible to read (/get) or write (/set) this value. The unit of this value is V.

Current (numeric)

Instantaneous measured electrical current. Value can be found in the published state on the current property. It's not possible to read (/get) or write (/set) this value. The unit of this value is A.

Power (numeric)

Instantaneous measured power. Value can be found in the published state on the power property. It's not possible to read (/get) or write (/set) this value. The unit of this value is W.

Click mode (enum)

Click mode for wireless button. fast: only supports single click but allows faster reponse time.multi: supports multiple types of clicks but is slower, because it awaits multiple clicks.. Value can be found in the published state on the click_mode property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"click_mode": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"click_mode": NEW_VALUE}. The possible values are: fast, multi.

Action slide time (numeric)

Value can be found in the published state on the action_slide_time property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ms.

Action slide speed (numeric)

Value can be found in the published state on the action_slide_speed property. It's not possible to read (/get) or write (/set) this value. The unit of this value is mm/s.

Action slide relative displacement (numeric)

Value can be found in the published state on the action_slide_relative_displacement property. It's not possible to read (/get) or write (/set) this value.

Action slide time delta (numeric)

Value can be found in the published state on the action_slide_time_delta property. It's not possible to read (/get) or write (/set) this value. The unit of this value is ms.

Mode switch (enum)

Anti flicker mode can be used to solve blinking issues of some lights. Quick mode makes the device respond faster.. Value can be found in the published state on the mode_switch property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"mode_switch": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"mode_switch": NEW_VALUE}. The possible values are: quick_mode, anti_flicker_mode.

Action (enum)

Triggered action (e.g. a button click). Value can be found in the published state on the action property. It's not possible to read (/get) or write (/set) this value. The possible values are: single, slider_single, slider_double, slider_hold, slider_up, slider_down.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
