Philips 929003047801

Model	929003047801
Vendor	Philips

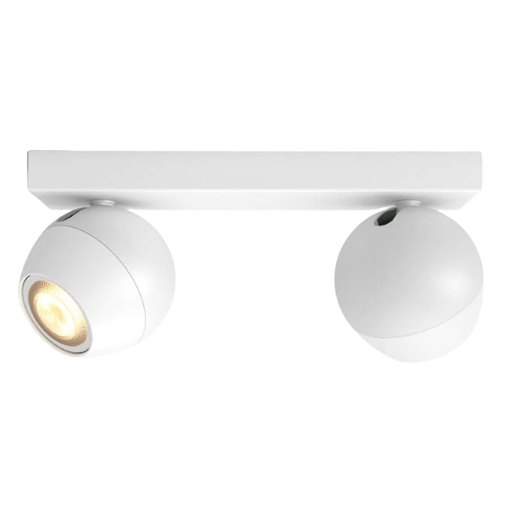

Description	Hue white ambiance Buckram double spotlight with Bluetooth (white)
Exposes	light (state, brightness, color_temp, color_temp_startup), power_on_behavior, effect, linkquality

Pairing

New Bulbs are automatically in pairing mode. Factory resetting a Hue bulb can be accomplished in 6 ways which are described below. After resetting the bulb will automatically connect.

Power Cycling

Repeat 5 times, starting with the bulb on:

• Turn off for 2 seconds, turn on for 8 seconds

The bulb will pulse when factory reset and allow joining on Z2M

Source: Reddit Verification: GitHub PR Comment

Touchlink factory reset

See Touchlink

Hue bridge

When the bulb is still connected to the Hue bridge, you can simply factory reset the bulb by removing it from the bridge via the Hue app. Orphaned bulbs (configured to connect to a non-existing Zigbee network) can be adopted by a Hue bridge by entering the 6 character serial number in the Philips Hue app.

Hue dimmer switch

With one of the two Hue Dimmer switches it is possible to put the bulbs into a factory reset.

1. Powercycle the bulb (if the bulb is on for too long this procedure might not work)
2. Bring the dimmer switch next to the bulb, as close as possible
3. Hold the I/On and 0/Off button pressed simultaneously for 10 to 12 seconds until…
4. The bulb flashes a couple of times. Don't release the buttons until the last flash + a safety second
5. Switch the bulb off and on again: it can now be paired again.

See also the VIDEO: Factory reset a Hue bulb with Hue dimmer switch.

Bluetooth (if supported by device)

Install the Philips Hue Bluetooth app for Android or iOS. You can use the app to trigger a factory reset on a paired light. (Note: The light will only be in bluetooth pairing mode for a couple of minutes after power-on)

TRADFRI remote control

This may also be possible with the Tradfri Remote Control by pressing and holding the reset button on the bottom of the remote (next to the battery). This may not always work, even if the Hue bulb starts flashing.

Power-on behavior

This device allows you to set the power-on behavior. Note that this requires at least November/December '18 firmware update of the device. Send a MQTT command to zigbee2mqtt/FRIENDLY_NAME/set with the following payload.

{
    "hue_power_on_behavior": "on",          // default, on, off, recover
    "hue_power_on_brightness": 125,         // same values as brightness
    "hue_power_on_color_temperature": 280,  // same values as color_temp
    "hue_power_on_color": "#0000FF"         // color in hex notation, e.g. #0000FF = blue
}

Attribute Value	Description
default	reset to factory default value
on	bulb on after power loss with configured brightness, color-temperature and color
off	bulb off after power loss
recover	last running state after power loss

Rules:

• hue_power_on_behavior value always has to be provided
• hue_power_on_brightness, hue_power_on_color_temperature and hue_power_on_color can only be provided when hue_power_on_behavior = on
• hue_power_on_color_temperature and hue_power_on_color cannot be provided together, only one can be set
• When setting hue_power_on_behavior = on, any not provided values will be reset to their factory defaults

Note: if hue_power_on_behavior is set to off, then the only way to turn the bulb on will be through a paired smart device (see pairing above). You will NOT be able to turn the bulb on by sequentially switching power on and off.

OTA updates

This device supports OTA updates, for more information see OTA updates.

Options

How to use device type specific configuration

• transition: Controls the transition time (in seconds) of on/off, brightness, color temperature (if applicable) and color (if applicable) changes. Defaults to 0 (no transition). The value must be a number with a minimum value of 0

• color_sync: When enabled colors will be synced, e.g. if the light supports both color x/y and color temperature a conversion from color x/y to color temperature will be done when setting the x/y color (default true). The value must be true or false

• state_action: State actions will also be published as 'action' when true (default false). The value must be true or false

Exposes

Light

This light supports the following features: state, brightness, color_temp, color_temp_startup.

• state: To control the state publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"state": "ON"}, {"state": "OFF"} or {"state": "TOGGLE"}. To read the state send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"state": ""}.
• brightness: To control the brightness publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"brightness": VALUE} where VALUE is a number between 0 and 254. To read the brightness send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"brightness": ""}.
• color_temp: To control the color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color_temp": VALUE} where VALUE is a number between 153 and 454, the higher the warmer the color. To read the color temperature send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color_temp": ""}. Besides the numeric values the following values are accepted: coolest, cool, neutral, warm, warmest.
• color_temp_startup: To set the startup color temperature (in reciprocal megakelvin a.k.a. mired scale) publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"color_temp_startup": VALUE} where VALUE is a number between 153 and 454, the higher the warmer the color. To read the startup color temperature send a message to zigbee2mqtt/FRIENDLY_NAME/get with payload {"color_temp_startup": ""}. Besides the numeric values the following values are accepted: coolest, cool, neutral, warm, warmest, previous.

On with timed off

When setting the state to ON, it might be possible to specify an automatic shutoff after a certain amount of time. To do this add an additional property on_time to the payload which is the time in seconds the state should remain on. Additionally an off_wait_time property can be added to the payload to specify the cooldown time in seconds when the light will not answer to other on with timed off commands. Support depends on the light firmware. Some devices might require both on_time and off_wait_time to work Examples : {"state" : "ON", "on_time": 300}, {"state" : "ON", "on_time": 300, "off_wait_time": 120}.

Transition

For all of the above mentioned features it is possible to do a transition of the value over time. To do this add an additional property transition to the payload which is the transition time in seconds. Examples: {"brightness":156,"transition":3}, {"color_temp":241,"transition":1}.

Moving/stepping

Instead of setting a value (e.g. brightness) directly it is also possible to:

• move: this will automatically move the value over time, to stop send value stop or 0.
• step: this will increment/decrement the current value by the given one.

The direction of move and step can be either up or down, provide a negative value to move/step down, a positive value to move/step up. To do this send a payload like below to zigbee2mqtt/FRIENDLY_NAME/set

NOTE: brightness move/step will stop at the minimum brightness and won't turn on the light when it's off. In this case use brightness_move_onoff/brightness_step_onoff

{
  "brightness_move": -40, // Starts moving brightness down at 40 units per second
  "brightness_move": 0, // Stop moving brightness
  "brightness_step": 40 // Increases brightness by 40
  "color_temp_move": 60, // Starts moving color temperature up at 60 units per second
  "color_temp_move": "stop", // Stop moving color temperature
  "color_temp_step": 99, // Increase color temperature by 99
}

Power-on behavior (enum)

Controls the behavior when the device is powered on after power loss. Value can be found in the published state on the power_on_behavior property. To read (/get) the value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/get with payload {"power_on_behavior": ""}. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"power_on_behavior": NEW_VALUE}. The possible values are: off, on, toggle, previous.

Effect (enum)

Value will not be published in the state. It's not possible to read (/get) this value. To write (/set) a value publish a message to topic zigbee2mqtt/FRIENDLY_NAME/set with payload {"effect": NEW_VALUE}. The possible values are: blink, breathe, okay, channel_change, candle, finish_effect, stop_effect, stop_hue_effect.

Linkquality (numeric)

Link quality (signal strength). Value can be found in the published state on the linkquality property. It's not possible to read (/get) or write (/set) this value. The minimal value is 0 and the maximum value is 255. The unit of this value is lqi.
